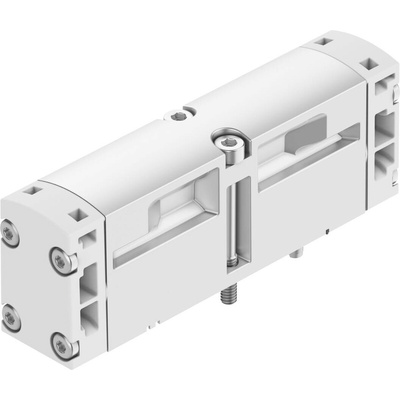

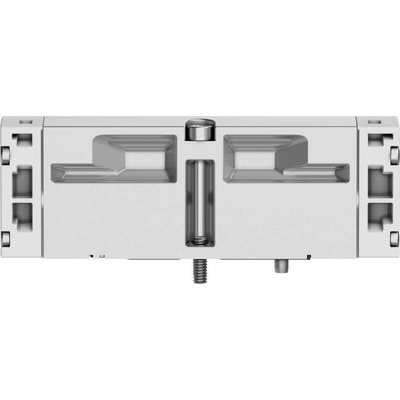

Festo 5/2 Monostable Pneumatic Solenoid Valve - Pneumatic VSPA-B-M52-M-A2 Series, 546727

Festo Pneumatic Solenoid Valve, 550L/min Standard Nominal Flow Rate, Sub-Base Size 18mm to ISO 15407-1 Connection - VSPA-B-M52-M-A2

Take the pressure out of fluid control with this pneumatic solenoid valve from Festo. When supplied with a constant electrical signal, the monostable 5/2-way valve causes a poppet to move into an open or closed position. By doing so, it changes the air direction or stops the flow completely. As the unit's housing is made from strong die-cast aluminium it shrugs off the demands of harsh environments.

Features & Benefits

• Can be mounted in any position for flexibility
• Wide operating temperature range between -10°C and +60°C for safe use in harsh settings
• NBR seals are abrasion-resistant to cut out the risk of leaks
• Light weight of 80g minimises pressure on your mounting surface
• Narrow width of 18mm, so it's a space-saving component

Applications

• Cylinder actuation
• Automation and control systems
• Industrial valves

Can I use this valve in humid work areas?

Yes, you can. Thanks to its maximum operating humidity of 90% RH, this valve can function in steamy situations.

What's the operating pressure of this unit?

This unit has a wide operating pressure range between -0.9 and 10 bar, so it's a versatile pick.
