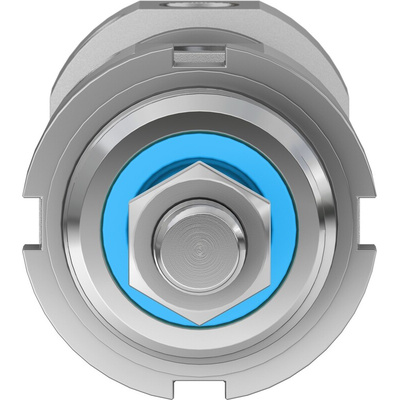

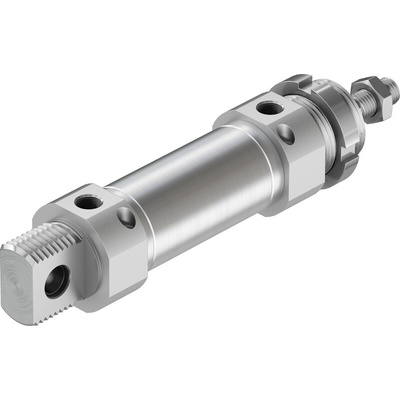

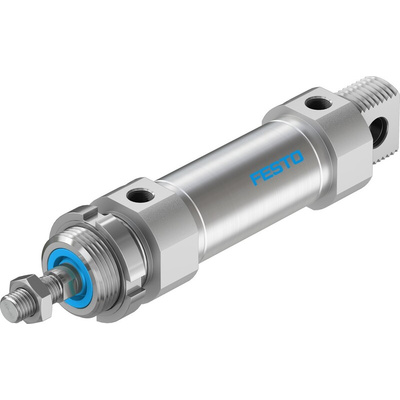

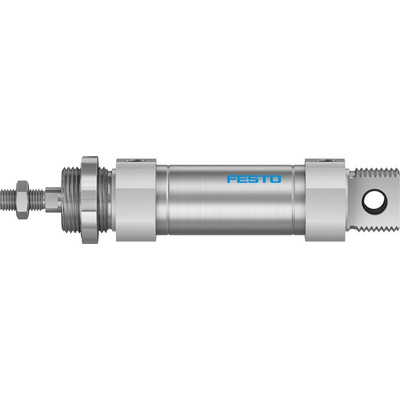

DSNU-32-40-PPV-A, Festo Pneumatic Roundline Cylinder - 196021, 32mm Bore, 40mm Stroke, DSNU Series, Double Acting

Festo Pneumatic Roundline Cylinder, 1 to 10 Bar Operating Pressure, 14mm Cushioning Length - DSNU-32-40-PPV-A

Need to create linear motion to eject, clamp or arrange objects? Install this pneumatic roundline cylinder from Festo. It delivers precision double-action control by using compressed air to advance and retract the piston in a straight line. Dual-ended cushioning dampens impacts, reducing the risk of damage to your equipment. You can adjust this buffer length up to a maximum of 14mm to customise it for your application. Rugged NBR and TPE-U(PU) seals keep the unit airtight to maintain system pressure.

Features & Benefits

• Tough high-alloy steel construction withstands impact and wear to extend the lifespan of the unit
• Wide operating pressure range between 1 and 10 bar for versatile use
• Weighs only 433g so doesn't add strain to your setup

Applications

• Assembly and packaging lines
• Automated access control
• Dental equipment
• Vehicle manufacturing

Can I use this pneumatic roundline cylinder in damp or humid conditions?

Yes, the barrel has a wrought aluminium alloy coating that's rust-resistant to shrug offt corrosion in demanding conditions.

What size connection does this pneumatic roundline cylinder have?

It has a G1/8 pneumatic connection, so it's widely compatible with standard fittings.
