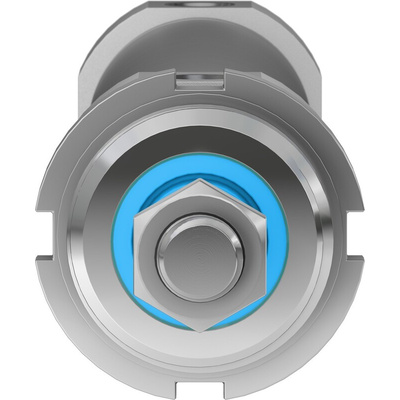

DSNU-40-160-P-A, Festo Pneumatic Roundline Cylinder - 195996, 40mm Bore, 160mm Stroke, DSNU Series, Double Acting

Festo Pneumatic Roundline Cylinder, M12x1.25 Piston Rod Thread, 1 to 10 Bar Operating Pressure - DSNU-40-160-P-A

Precisely position workpieces in your automated system with this pneumatic roundline cylinder from Festo. As a double-acting device, it uses air to extend and retract the piston to give you close control in multiple directions. A stroke length of 160mm means the component extends far, letting you move objects over large distances. The rod has cushioned rings at both ends to absorb impact and reduce wear. With its built-in proximity switch, the cylinder detects the position of items without making contact, minimising the risk of damage.

Features & Benefits

• Corrosion-resistant aluminium alloy housing for durability
• Standardised M12 x 1.25 piston rod thread for wide compatibility with pneumatic equipment
• Airtight NBR seal to maintain consistent system pressure
• Wide operating temperature range between -20°C and +80°C for use in demanding industrial environments

Applications

• Industrial automation
• Machine assembly
• Bottling plants
• Manufacturing units

What media can I use this pneumatic cylinder with?

This pneumatic roundline cylinder is recommended for use with compressed and lubricated air. If you use it with lubricated air, you should always do so to avoid contamination of clean compressed airways.
