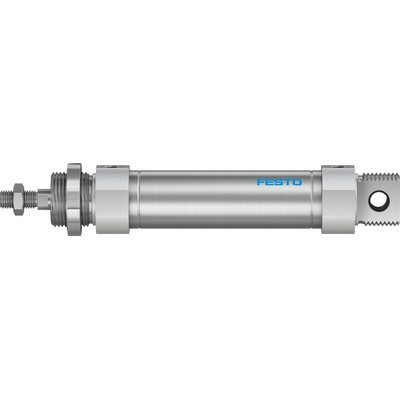

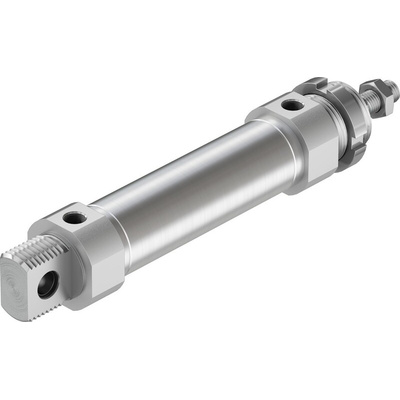

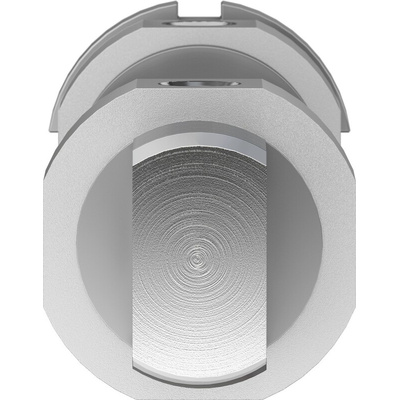

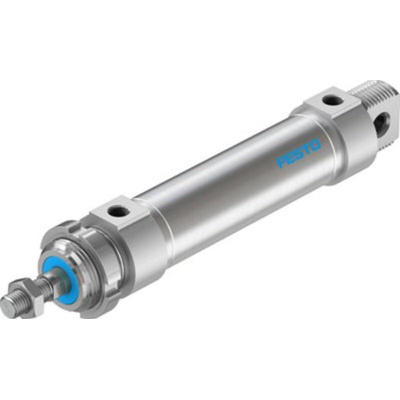

DSNU-32-80-P-A, Festo Pneumatic Roundline Cylinder - 195983, 32mm Bore, 80mm Stroke, DSNU Series, Double Acting

Festo Pneumatic Roundline Cylinder, M10x1.25 Piston Rod Thread, 1 to 10 Bar Operating Pressure - DSNU-32-80-P-A

Use this Festo pneumatic roundline cylinder to accurately position workpieces in your system. It has a long reach thanks to a stroke length of 80mm, giving you efficient automated control. With its double-acting pneumatic function, the device extends and retracts using compressed air for effective positioning forwards and backwards. An M10 x 1.25 piston rod thread complies with industry standards, so is widely compatible. As it's protected by a durable aluminium alloy casing, this pneumatic roundline cylinder is corrosion-resistant and a reliableoption for use in damp environments.

Features & Benefits

• Robust NBR O-ring achieves an airtight seal for reliable system pressure
• Works with compressed and lubricated air for versatility
• Self-adjusting cushioning rings at both ends for smooth positioning of fragile objects
• Broad operating temperature range between -20°C and +80°C to withstand harsh conditions

Applications

• Semiconductor manufacturing
• Packing plants
• Mining industry

Can I monitor the position of this pneumatic roundline cylinder using a control device?

Yes, the cylinder comes with an integrated proximity sensor, letting you position items without direct contact to minimise the risks of wear.

Datasheet - DSNU-32-80-P-A

Catalogue - Round Cylinders DSNU

Instruction Sheet - DSNU
