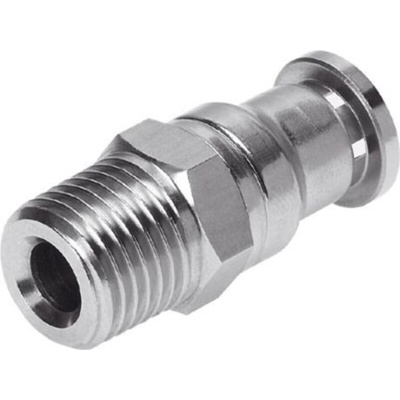

CRQS-1/2-12, Festo CRQS Series Straight Threaded Adaptor, R 1/2 Male to Push In 12 mm, Threaded-to-Tube Connection Style, 162868

Festo Threaded-to-Tube Straight Push-In Adaptor, R1/2 Male to 12mm - CRQS-1/2-12

Use this high-quality pneumatic adaptor from Festo to make a secure join in a compressed air system. It's suitable to use in pressure ranges of up to 10 bar and is made from high-alloy steel for superior performance and effective corrosion resistance. A nitrile-rubber sealing ring on the fitting ensures a reliable and secure join with a pipe. The adaptor uses innovative joining technology and simply pushes onto a hose, ensuring a firm grip.

• Can be assembled in any position for improved versatility
• Wide operating temperature range of -15°C to +120°C so suitable for use in extreme environments
• Highly resistant to chemicals so can be subjected to frequent washdowns and cleaning
• Absorbs vibration and pressure surges for improved safety and reliability

Applications

• Textile and printing industry
• Industrial automation
• Warehouses and packaging lines

Does this fitting need to be precisely aligned before I mount it?

There's no need to align the adaptor before it's mounted, thanks to its user-friendly rotational ability.

What thread does this connector have?

This adaptor has a self-sealing R1/2 male thread, which can be used more than once.

DataSheet - CRQS-1/2-12

Catalogue - Push-in fittings CRQS
