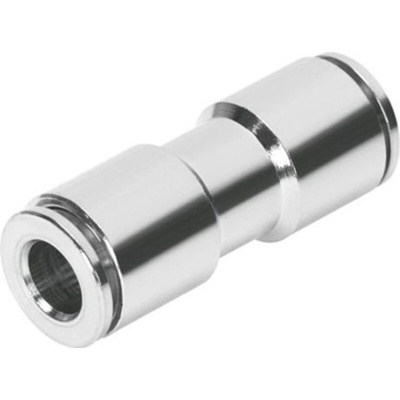

NPQM-D-Q8-E-P10, Festo NPQM Series Straight Tube-to-Tube Adaptor, Push In 8 mm to Push In 8 mm, Tube-to-Tube Connection Style, 558762

Festo Pneumatic Fitting, Straight Tube-to-Tube Adaptor, 7mm Nominal Size - NPQM-D-Q8-E-P10

This straight push-in fitting from Festo creates an airtight network in your pressurised systems. Use it to join hoses and maintain continuous pressure to drive your operation efficiently. You can quickly and easily make or remove links, thanks to the push-to-connect design. The nickel-plated brass body withstands corrosion, extending the service life of the product. Nitrile rubber sealing resists chemical and abrasive damage to prevent leaks in your closed circuits. Thanks to a wide operating pressure range between -0.95 and 16 bar, this is a versatile component.

• Broad operating temperature range between -20°C and +70°C for use in challenging conditions
• Lightweight at 18g, so doesn't add unnecessary weight to equipment

Applications

• Manufacturing and packaging operations
• Automotive industry
• Automated doors

How do I choose the right pneumatic fitting?

The size of your pneumatic fittings must match the size of the hose it connects to, otherwise, the system won't be airtight. Establish the inside and outside diameters of your tubes and pick a fitting to suit.

Do I need seal tape for this pneumatic fitting?

You don't need tape to seal this fitting as it comes with a hardwearing nitrile rubber seal to ensure it's airtight.
