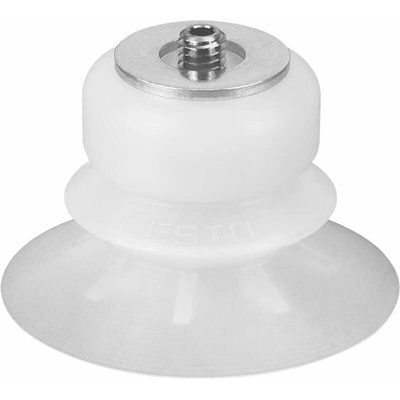

Festo 30mm Bellows Silicon Suction Cup ESS-30-BS, M6

Festo Bellows Suction Cup, 30mm, 26.2N Holding Force - ESS-30-BS

Streamline your automated processes with this high-quality suction cup from Festo. It uses a self-sealing vacuum port for quick installation and disconnection, allowing you to make frequent cup changes without damaging your pneumatic system. The silicon pad material is safe to use in food production environments. It has a high thermal resistance up to +180°C for use in a wide range of processes, including heat-treating and sterilising. The bellows-shaped cup is capable of lifting and moving a range of objects with curved, slanted and uneven surfaces.

• Suction cup is transparent for easy visual inspection
• Holding force of 26.2N means it can reliably grip, move and turn items
• Nickel-plated brass thread with galvanised and chrome-plated steel is strong and highly corrosion-resistant
• Can be used in any position for convenient flexibility of use

Applications

• Food and beverage industry
• Process automation
• Packing and conveying equipment

How big is this suction cup?

This suction cup has a 30mm pad diameter, a cup volume of 4.07cm3 and a height compensator of 10.5mm. The minimum workpiece radius is 80mm.

Datasheet - ESS-30-BS

Catalogue - ESS-30-BS

Instruction Sheet - ESS-30-BS
