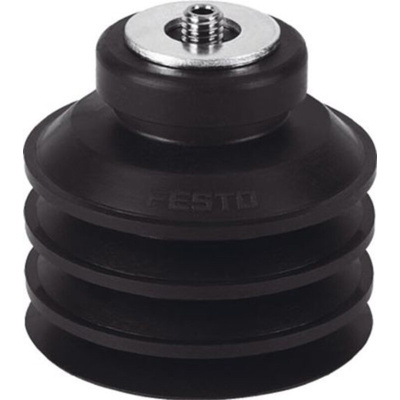

Festo 40mm Bellows NBR Suction Cup ESS-40-CN

Festo Suction Cup, 100mm Minimum Workpiece Radius, Black - ESS-40-CN

Looking for a way to pick and place small objects? Get a grip with this bellows suction cup from Festo. First, you attach it to a vacuum generator, which draws the air out of the 19.72cm³ suction cup. This causes a pressure difference that allows you to grab and move items with a minimum radius of 100mm. You can even use the unit in challenging conditions, as its wide operating temperature range between -10°C and +70°C ensures it won't get hot under the collar.

Features & Benefits

• Low weight of 21.9g, so it won't put strain on your mounting surface
• Mountable in any position to allow for flexibility
• NBR body is resistant to oil damage and abrasion for reliable leak prevention and a long service life
• Holding force of 42.4N at nominal operating pressure, so you can pick and place heavier workpieces

Applications

• Manufacturing industry
• Pharmaceuticals
• Automotive sector

What type of connection does this unit use?

The top of this cup has a standard M6 connection that attaches to a vacuum generator.

Operating pressure0 bar ... 0.95 bar

Datasheet - ESS-40-CN
