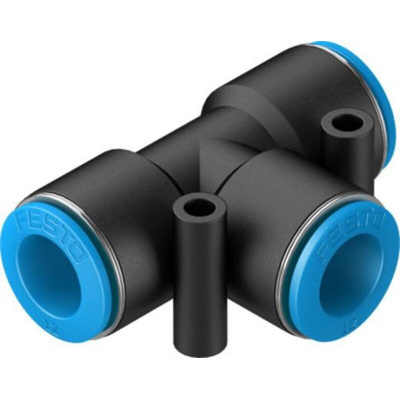

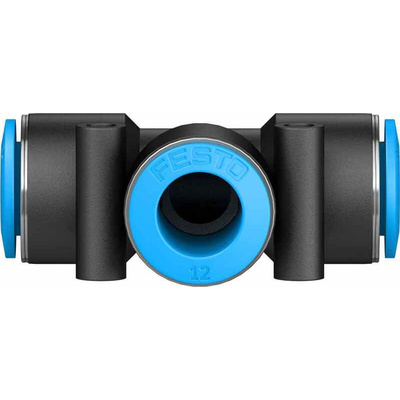

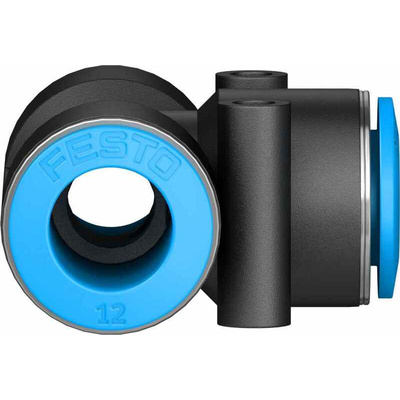

Festo QST-12-20 Series Tee Tube-to-Tube Adaptor, Push In 12 mm to Push In 12 mm, Tube-to-Tube Connection Style, 130806

Festo Tee Tube-to-Tube Adapter, Push In 12 mm to Push In 12 mm - QST Series - QST-12-20

This tee-shaped adapter from Festo features a stainless-steel inner claw to securely grip tubing without damaging its surface. The component can safely absorb vibration and surges in pressure, which makes it suitable for use in industrial pneumatic applications of all types. Its thermoplastic housing offers good resistance to corrosion and chemicals. A nitrile rubber (NBR) sealing ring ensures an airtight join between the outer diameter of the standard tubing and the body of the fitting.

• Tube-to-tube connection style
• Connector A is a push-in 10 mm
• Connector B is a push-in 12 mm
• Body material of PBT (polybutylene terephthalate)
• Not chemically resistant
• Not food grade
• Nominal size of 8.7 mm
• Operating pressure range of -0.95 bar to 6 bar
• Ambient temperature range of -10°C to +80°C

Range Information

• The Festo range of QS fittings is suitable for pneumatic applications up to +80°C
• Compact size makes the fittings useful in confined spaces. The units are made from stainless steel, so they offer high corrosion and chemical resistance
• This range also includes self-sealing fittings that will block airflow once the tubing is disconnected from the unit

The push-in T-connector NPQM-T-Q6-E-P10 Attractively priced metal push-in fitting for pneumatic applications with a temperature range up to 70 °C and a pressure range up to 16 bar.

Size Standard
Nominal size 5 mm
Design structure Push/pull principle
Operating pressure complete temperature range -0
95 - 16 bar
Operating medium Compressed air in accordance with ISO8573-1:2010 [7:-:-]
