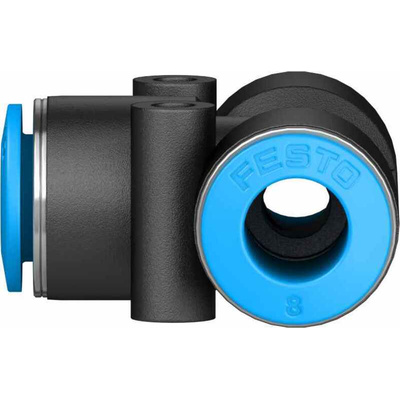

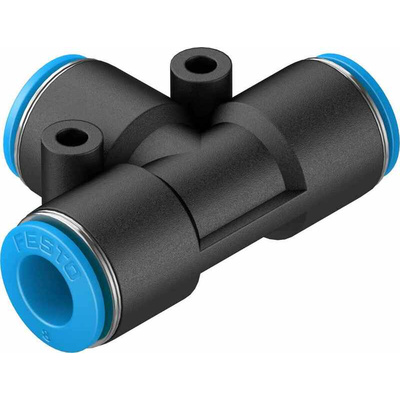

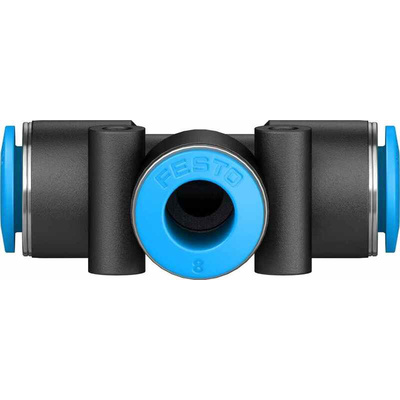

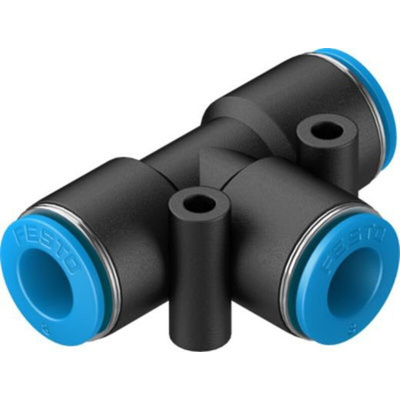

Festo QST-8-50 Series Tee Tube-to-Tube Adaptor, Push In 8 mm to Push In 8 mm, Tube-to-Tube Connection Style, 130804

Festo Tee Tube-to-Tube Adapter, Push In 8 mm to Push In 8 mm - QST Series - QST-8-50

This push-in adapter from Festo provides a corrosion-resistant connection between pneumatic tubes. It can be used in high-pressure applications and at temperatures up to +80°C. The fitting simplifies the process of connecting pipes and can be aligned after it has been attached to tubing. Due to the unit's low-friction PTFE (polytetrafluoroethylene)coating, you can slide pipes in with ease. This connector can be reused up to five times and has a self-retaining claw to hold pipes firmly without causing damage to their surfaces.

• Tube-to-tube connection
• Connector A is push-in 8 mm
• Connector B is push-in 8 mm
• Body material of PBT (polybutylene terephthalate)
• Not chemically resistant
• Not food grade
• Nominal size of 5 mm
• Operating pressure range of -0.95 bar to 6 bar
• Ambient temperature range of -10°C to +80°C

Range Information

• The Festo series of QS adapters includes flame-retardant units that are suitable for use in automotive or construction welding systems where sparking is likely
• The range also features push-in fittings with swivel connectors that can rotate in a full circle, as well as self-sealing units that can automatically block the airflow in pneumatic pipes after the tube is disconnected from the unit

The push-in T-connector NPQM-T-Q8-S8-P10 Attractively priced metal push-in fitting for pneumatic applications with a temperature range up to 70 °C and a pressure range up to 16 bar.

Size Standard
Nominal size 5,5 mm
Design structure Push/pull principle
Operating pressure complete temperature range -0,95 - 16 bar
Operating medium Compressed air in accordance with ISO8573-1:2010 [7:-:-]
