FestoQST3-8-6 Manifold Push In 8 mm Push In 6 mm

Festo Pneumatic Fitting, Tee Tube-to-Tube Adaptor, PBT Body Material - QST3-8-6

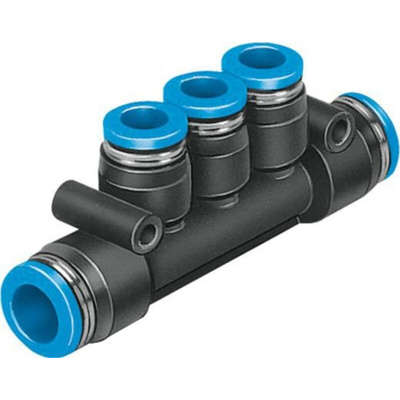

Distribute pressurised air or water to multiple devices with this Festo pneumatic fitting. It has one 8mm input and four 6mm outputs with push-in connections for easy installation. Inside each connector, there's a stainless steel retaining claw to ensure a secure attachment to the tube. The fittings also have nitrile seals to prevent leakage and maintain system pressure. On the outside, blue release rings are easy to identify, making dismantling the setup straightforward. The unit orients through 360° to give you plenty of installation options.

• PBT thermoplastic material gives this fitting strength and resilience
• Operating temperature range between -10°C to +80°C, for use in tough conditions
• Suitable for compressed air, vacuums and water, making it a versatile choice

Applications

• Assembly lines
• Non-food factory machinery

Is this adaptor resistant to corrosion?

The adaptor is corrosion resistance class CRC1, which means it has protection against low levels of corrosion.

At what operating pressure can I use this pneumatic fitting?

For its entire temperature range, the adaptor has an operating pressure between -0.95 bar to 6 bar. Its temperature-dependent pressure varies between -0.95 bar to 14 bar, so it's suited to low-pressure and high-pressure systems.

Datasheet - QST3-8-6

Catalogue - Multiple Distributor QS

Brochure - Tubing And Fittings
