DGSL-12-50-Y3A, Festo Pneumatic Guided Cylinder - 543979, 16mm Bore, 50mm Stroke, DGSL Series, Double Acting, Пневмоцилиндр

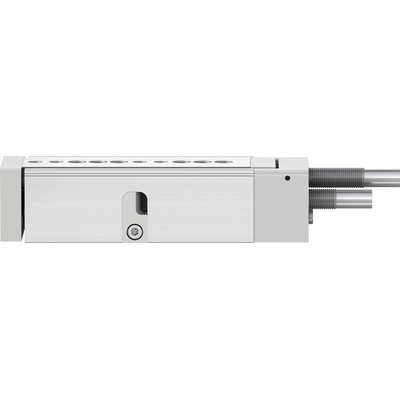

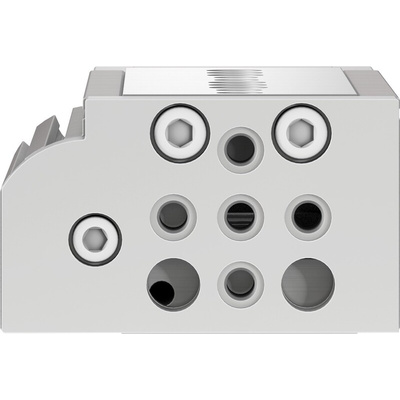

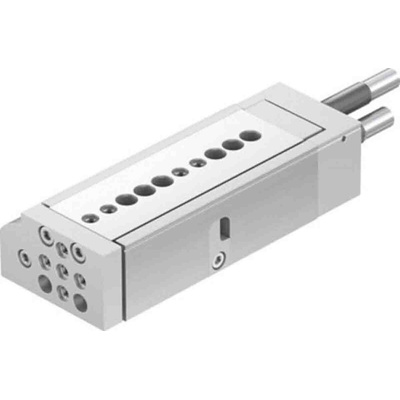

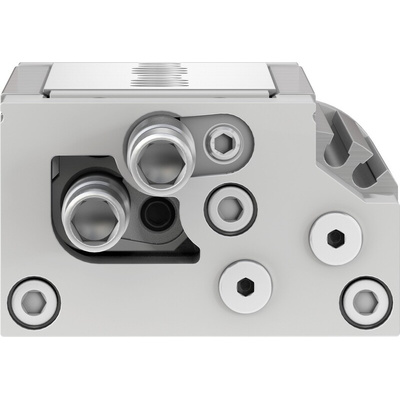

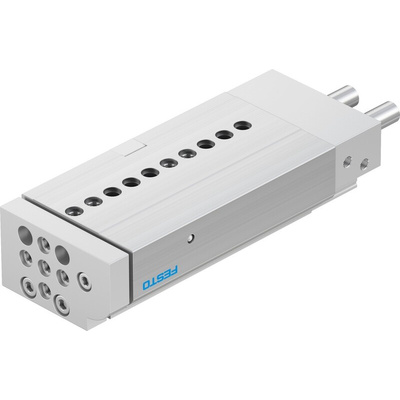

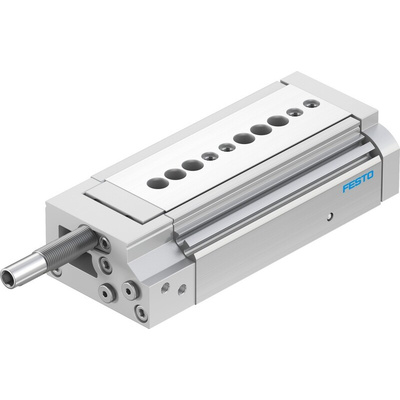

Festo Double-Acting Pneumatic Guided Cylinder, 16mm Bore, 50mm Stroke - DGSL-12-50-Y3A

Safely move heavy objects in your industrial system with this pneumatic guided cylinder from Festo. It has shock absorbers on both ends, which reduce impact and minimise noise during operation. You can also use it with a proximity sensor to detect the position of an object and avoid a collision. An in-built ball bearing cage guide means the load is evenly distributed in the pneumatic system. The HNBR (hydrogenated nitrile butadiene rubber) seal is resistant to oil and extreme temperatures, making this cylinder a durable choice in demanding environments.

• Broad operating temperature range between 0°C and +60°C for use in harsh environments
• Can be mounted in any position for a flexible setup
• Tough wrought aluminium alloy housing can withstand hard impacts
• Can be lubricated for smoother movement

Applications

• Conveyor belt
• Robotics
• Construction equipment

How is this double-acting cylinder different from a single-acting cylinder?

This double-acting cylinder has two air valves, which means the piston can move in two different directions. A single-acting cylinder has only one air valve, so the piston can only move in a single direction.

Datasheet - DGSL-12-50-Y3A

Catalogue - Mini Slides DGSL
