DGSC-6-10-P-L, Festo Pneumatic Guided Cylinder - 569793, 6mm Bore, 10mm Stroke, DGSC Series, Double Acting

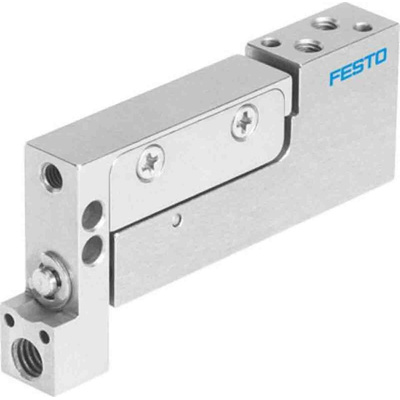

Festo Pneumatic Guided Cylinder, Double Acting - DGSC Series - DGSC-6-10-P-L

Are you looking for a particularly small pneumatic slide? This tiny, double-acting guided cylinder is part of the Festo DGSC series. At only 8 mm wide, it's ideal for applications with short strokes and where space is tight. It features a precision ball-bearing cage guide to enhance low-friction motion and uniform movement when lifting loads. Twin pistons provide short cycle times and efficient use of power. A unit like this one can be used in processes such as chip picking and separation.

• Stroke length of 10 mm
• Bore length of 6 mm
• Maximum operating pressure of 6 bar
• M3 pneumatic connection
• Flexible cushioning plates at both ends
• Easy end-position adjustment
• Scotch yoke system
• Minimum operating temperature +10°C
• Maximum operating temperature of +50°C
• Total unit weight of 0.042 kg

Range Information

• The Festo DGSC series includes mini guided slide units that are extremely compact and among the smallest on the market
• Robust products made from high-alloy steel for a long service life
• Quality slide units enable efficient assembly and commissioning

The Festo DGSC series mini slide double-acting actuator has a flexible cushioning rings/plates at both ends. The actuator stroke is 10 mm.

Piston diameter = 6 mm
Operating mode of drive unit = yoke
Assembly position = any
