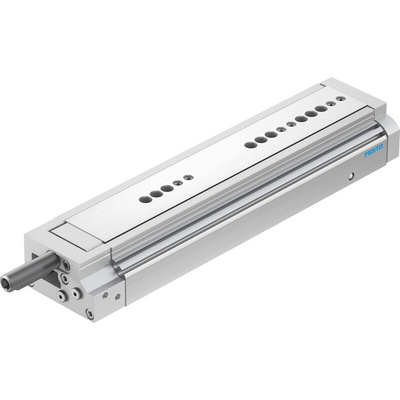

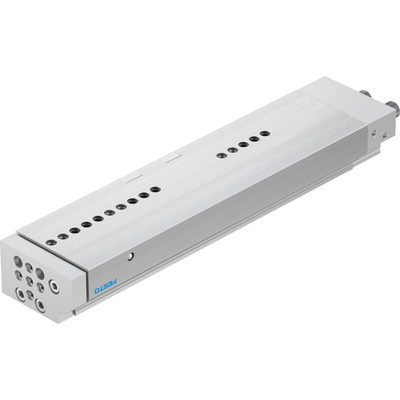

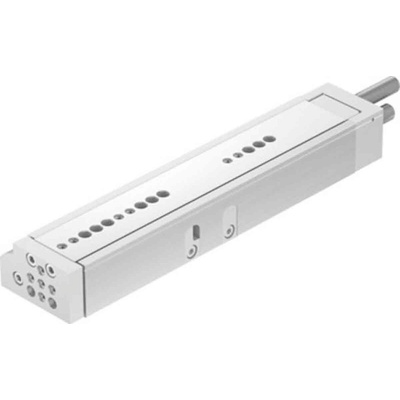

DGSL-16-150-PA, Festo Pneumatic Guided Cylinder - 543990, 20mm Bore, 150mm Stroke, DGSL Series, Double Acting

Festo Pneumatic Guided Cylinder, 0.8mps Maximum Speed, 20mm Bore - DGSL-16-150-PA

Need a strong and stable device to help move heavy loads in your industrial setup? Opt for this pneumatic guided cylinder from Festo. It's double-acting, so uses compressed air to extend and retract its piston rod, offering the reliable control of movement essential for more demanding applications. A 150mm stroke supports powerful operation, while a 20mm bore saves space in your system. Flexible cushioning rings at both ends offer support and impact resistance to deliver an extended service life. As this unit's made from wrought aluminium alloy, you can be sure it won't corrode in damp or humid industrial conditions.

Features & Benefits

• Maximum operating pressure of 8 bar suits heavy-duty applications
• Ball bearing cage guide system absorbs heavy lateral loads, reducing impact on your equipment
• Repetition accuracy of 0.3mm for reliability
• M5 pneumatic connection for industry-standard compatibility
• Made without copper or PTFE for minimal risk of environmental contamination

Applications

• In-factory transportation
• Automated processing
• Agricultural machinery

Does this cylinder work in challenging conditions?

As the unit operates safely in a wide temperature range between 0°C and +60°C, it's suitable for use in demanding settings.
