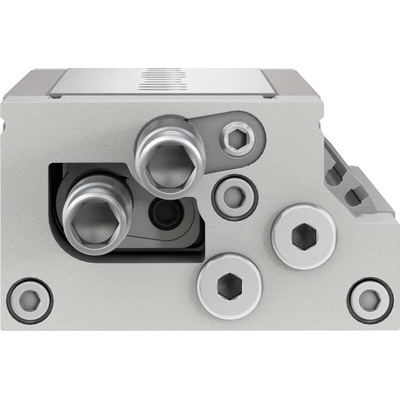

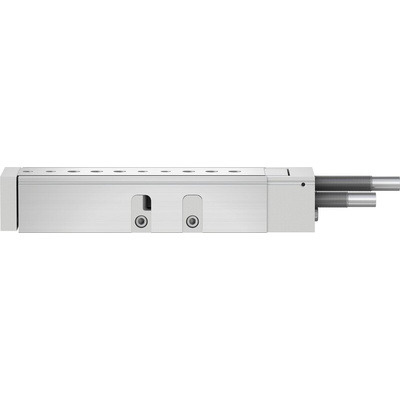

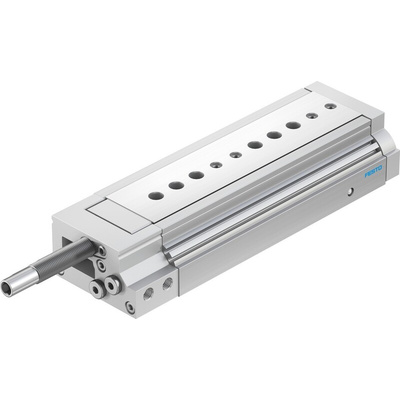

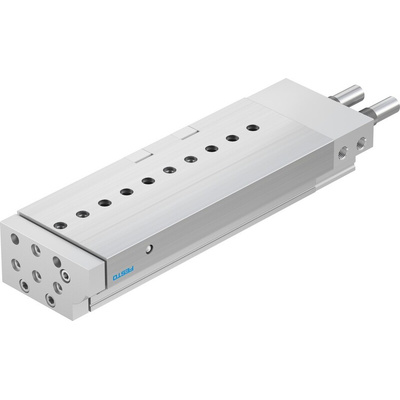

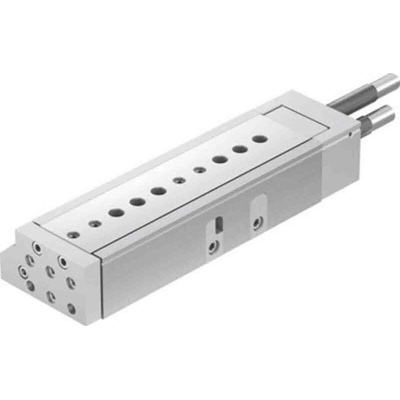

DGSL-20-100-Y3A, Festo Pneumatic Guided Cylinder - 544027, 25mm Bore, 100mm Stroke, DGSL Series, Double Acting

Festo Pneumatic Guided Cylinder, 8 Bar Maximum Operating Pressure, 25mm Bore - DGSL-20-100-Y3A

Looking for a device to help stabilise the movement of heavy loads in your factory equipment? Choose this pneumatic guided cylinder from Festo. It's a double-acting device that uses compressed air at pressures up to 8 bar to efficiently move its piston from end to end. A 25mm bore means the unit fits into compact systems, while its 100mm stroke delivers the powerful output you need to drive demanding industrial applications. For durability, a shock absorber at both ends ensures mechanical stress is minimised on both the cylinder and your equipment.

Features & Benefits

• Operating speed of 0.8mps for efficiency
• Repetition precision of ±0.01mm to achieve consistently accurate results
• Wrought aluminium alloy material for corrosion and impact resistance
• Ball bearing cage guide distributes mechanical stress evenly
• Broad operating temperature range of 0°C to +60°C for safe and dependable use in harsh conditions

Applications

• Industrial processing facilities
• Conveyor belts
• Agricultural equipment

Are the end positions of this pneumatic guided cylinder adjustable?

Yes. You can adjust the front length by 88mm and the rear length by 42mm to modify the unit to suit your system's needs.
