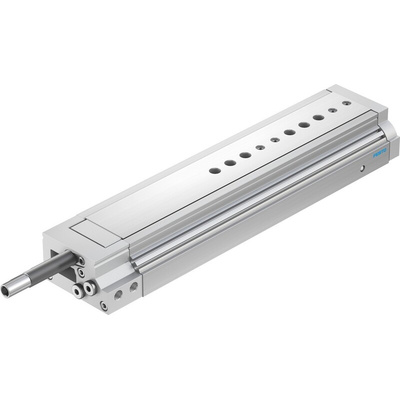

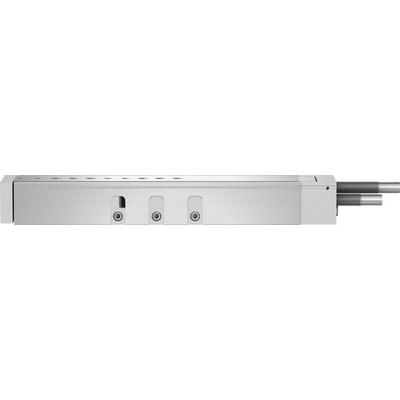

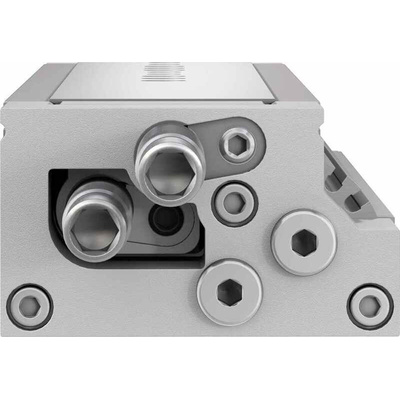

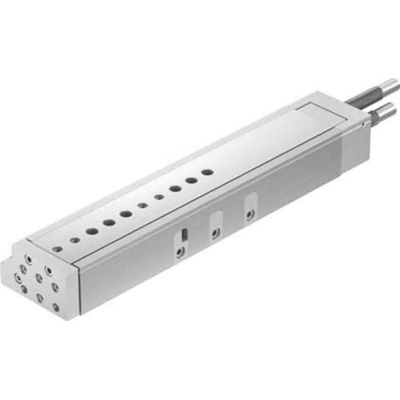

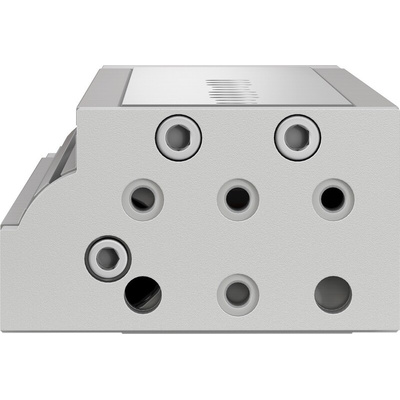

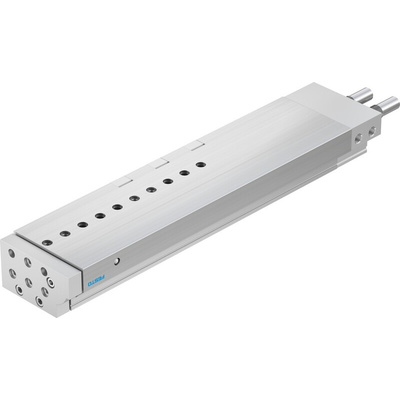

DGSL-20-200-Y3A, Festo Pneumatic Guided Cylinder - 544029, 25mm Bore, 200mm Stroke, DGSL Series, Double Acting

Festo Pneumatic Guided Cylinder, 8 Bar Maximum Operating Pressure, 0.8mps Operating Speed -DGSL-20-200-Y3A

Need a way to safely move heavy objects in your setup? Choose this double-acting pneumatic guided cylinder from Festo. It features a durable ball-cage guide with a high repetition accuracy of ±0.01 mm to consistently position workpieces exactly where you need them. As the unit can withstand up to 1.807kg of moving mass, it's ideal for use in heavy-duty industrial applications. It handles between 1 and 8 bar of operating pressure, so you can use it in small and medium-sized systems working under low pressure.

Features & Benefits

• Standard G1/8 connection for quick installation in your existing equipment
• Cushioning length of 17mm for impact resistance
• High alloy steel piston rod is non-corrosive for longevity, even in damp conditions

Applications

• Packaging machinery
• Construction industry
• Factory automation systems

How does this double-acting pneumatic cylinder work?

Double-acting pneumatic cylinders like this one use high-pressure air from both ends to move the piston backwards and forwards. They offer more accurate control than single-acting alternatives.

What accessories go with this cylinder?

You can customise the device with Festo accessories including a proximity sensor (121-5828), a push-in fitting (121-6178) and a control valve (121-4343).
