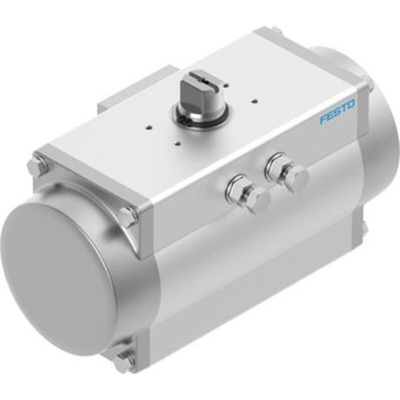

Festo DFPD-240-RP-90-RS60-F0710 Series 8 bar Single Action Pneumatic Rotary Actuator, 90° Rotary Angle

Festo Pneumatic Rotary Actuator, 8 Bar Maximum Input Pressure, 90° Swivel Angle - DFPD-240-RP-90-RS60-F0710

Use this rotary actuator from Festo for mechanical operations where turning is restricted. It's also known as a limited rotation cylinder and converts energy from pressurised air to oscillatory motion to rotate elements of your equipment. The unit's rack-and-pinion design consists of circular and linear gears that work together to generate an extension or retraction of the cylinder piston. Thanks to this structure, it can produce up to 89.5Nm of torque at a 90° swivel angle, so you can rely on it to reposition heavy loads.

• Broad operating temperature range between -20°C and +80°C for use in demanding conditions
• Single-acting design with mechanical spring returns to its original position even during power loss
• G1/4 thread connection is compatible with standard industrial equipment
• Maximum operating pressure of 8 bar, suitable for medium-duty applications

Applications

• Mining machinery
• Vehicle steering wheels
• Marine industry

What's the weight of this rotary actuator?

This rotary actuator weighs 10kg, which gives it stability in vibrating systems.

What position should I assemble this actuator in?

You can assemble this actuator in any position, making it a flexible choice for your pneumatic system.

Datasheet - DFPD-240-RP-90-RS60-F0710
