Festo DHTG-140-4-A Series 8 bar Double Action Pneumatic Rotary Actuator, <= 0.03° Rotary Angle

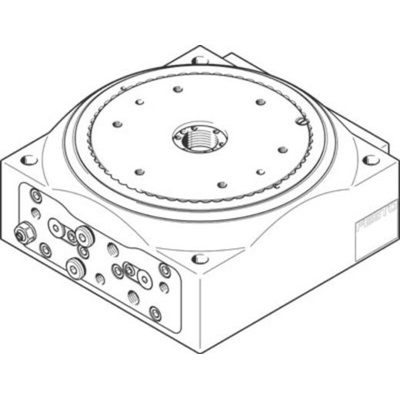

Festo Rotary Indexing Table - DHTG Series - DHTG-140-4-A

Let the robust mechanics of the Festo pneumatic rotary indexing table do your positioning tasks for you. The smooth cushioning motion of this double-acting actuator offers continuous rotary movement, variable rotational directions and different speeds. It also supplies parts quickly through its mounted rotating plate. The unit's selectable indexing allows for multiple process positions, making it a versatile choice for a variety of applications. It's ideal for medium-duty tasks that require a certain amount of speed, for example, assembly or sequential machining.

• Maximum input pressure of 8 bar
• Rotary angle of ≤ 0.03°
• Rotary diameter of 140 mm
• Parallelity poppet valve of ≤ 0.04 mm
• Axial eccentricity poppet valve of ≤ 0.02 mm
• Concentricity poppet valve of ≤ 0.02 mm
• For inductive sensors
• Pitch of 4
• Rack and pinion design
• Optional mounting position
• Female thread G1/8 pneumatic connection

Range Information

• The DHTG range of Festo rotary indexing tables features multiple actuating options such as clockwise and anti-clockwise, reciprocating motion and variable actuation
• Some units in this range feature overload protection to prevent the indexing table from being damaged in the event of shock absorber failure or a mass moment of inertia

The Festo rotary indexing table DHTG-140-4-A For position sensing. The indicated forces and torques refer to the locked table and can also act on the table plate.

Size=140
Parallelity poppet valve=<= 0
04 mm
Axial ecc poppet valve=<= 0
02 mm
Concentricity poppet valve=<= 0
