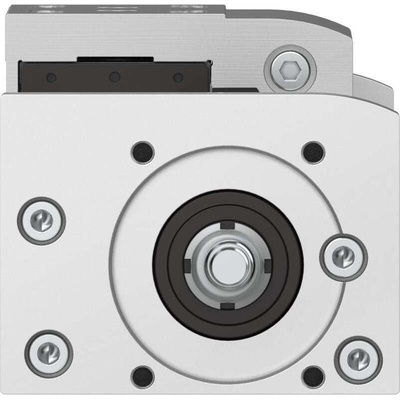

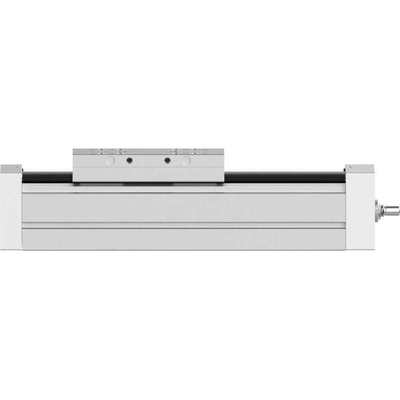

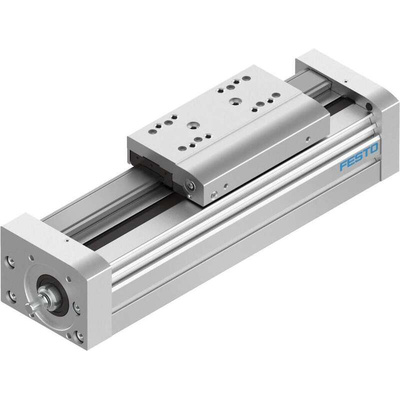

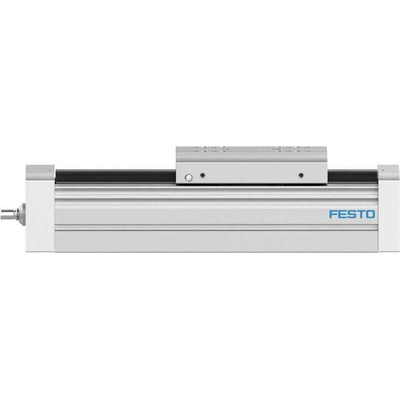

EGC-80-100-BS-10P-KF-0H-ML-GK, Festo Screw Driven Linear Actuator, 100mm, 750mm/s

Festo Electric Linear Actuator, Spindle Axis, 100mm Stroke Length - EGC-80-100-BS-10P-KF-0H-ML-GK

For repeated high-precision interactions with workpieces along a fixed axis, choose this electric linear actuator from Festo. It has a recirculating ball bearing guide, so you can preload it to an exact specification and boost the accuracy of your system. Spindle support and a sturdy steel guide rail allow the slide to accelerate at a rate of up to 15mps² for designs where speed and quick reactions are essential. A spindle pitch of 10mm/U minimises energy wasted through noise by reducing friction between the spindle and the nut.

Features & Benefits

• Flexible motor mounting for use with stepper and servo motors
• Working stroke of 100mm for tasks that call for short-range precise movements
• IP40 rating indicates protection against solid objects as small as 1mm in size
• Housing made of anodised wrought aluminium alloy for protection against corrosion and wear

Applications

• Warehouses
• Factory automation

What's the operating temperature range of this electric linear actuator?

The device broadly operates in temperatures between -10°C and +60°C for reliable use in demanding environments.

What's this actuator's maximum feed force?

The unit can handle a maximum feed force of 650N due to its optimised cross-section.
