ELGS-BS-KF-32-400-8P-ST-M-H1-PLK-AA, Festo Micro Linear Actuator, 0.18mm, 24V dc, 40N, 0.18 m/s

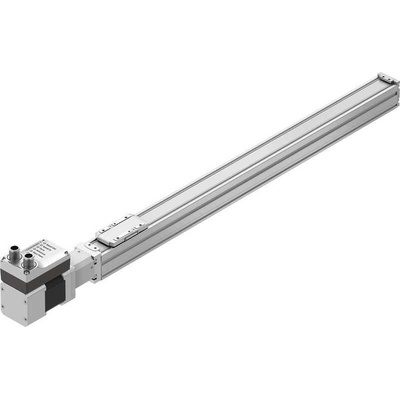

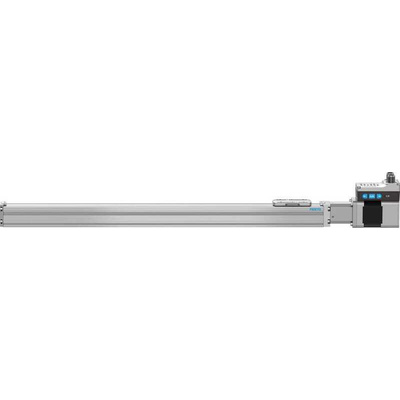

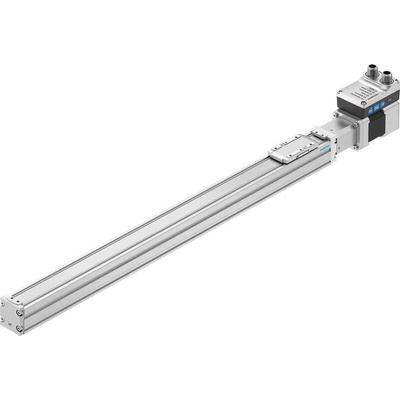

Festo's Spindle Axis Unit - ELGS-BS-KF-32-400-8P-ST-M-H1-PLK-AA

Forming part of Festo's ELGS range of products is this ELGS-BS-KF-32-400-8P-ST-M-H1-PLK-AA ball screw axis unit, the axis features optimal smooth-running characteristics which make it the ideal unit for the simplest of tasks. This unit also forms part of Festo's simplified motion series which boasts a huge range of capabilities, enabling a complete solution for simple movements between two mechanical end positions. The axis is super easy to configure and can be put to work and be operational without the need for any software - further simplifying its use.

• Highly compact and cost-effective
• load-bearing inside slide guide is equipped with the long-lasting protection of a stainless-steel cover strip
• Offer users a complete solution with an integrated actuator, motor and servo drive
• Ideal for precise XY movements, e.g. in assembly plants or when handling small parts as well as for test and inspection systems
• Protected against external influenced due to the internal guide
• Sleek design, offing an aesthetically pleasing finish - also super easy to clean and less prone to soiling
• Integrated end positioning sensing
• Two control options integrated as standard - these are digital I/O and IO-Link
• Easy commissioning according to the plug and work principle: all parameters are manually adjustable directly on the actuator without any software or special expertise required
• Product of the Simplified Motion Series: does not need any external servo drive or any control cabinet for the installation
• Integrated stepper motor which produces linear mechanical actuation with a ball screw drive
• Size 32 with 400 mm stroke
• The spindle pitch is 8 mm and can be assembled in any position

Features & Benefits of the Simplified Motion Series

The simplified motion series combines simplicity of pneumatics with the advantages of electrical automation tasks. The simplified motion series hosts a range of integrated drives which form the perfect solution for those seeking an electric alternative to simple movement and positioning tasks to that of traditional electric drive systems that are usually complex and over-complicated.

• Includes IO-Link and digital I/O (DIO), removing the need for software in your operation. This design is simply based on "plug and work"
• The plug and work principle provides easy commissioning, all parameters are manually adjustable directly on the actuator - no software required
• Each drive has been designed for simple movement between two end positions
• Provides users with a complete solution with an integrated actuator, motor and servo driver
• Designed for swivel tasks, also applications that involve high loads
• Has a hollow shaft for the integrated duct for cables and hoses
• Standardised mounting interface which is for the direct connection to the electric mini slides EGSL, EGSC and EGSS
• Integrated end positioning sensing
• Products of the Simplified Motion Series: does not need any external servo drive or any control cabinet for the installation

Say yes to the Festo Simplified Motion Series

• Integrated - The integrated electronics in the drive are the core of the Simplified Motion Series
• Simple - For commissioning, simply set all relevant parameters directly on the drive (Speed and force, reference end position and cushioning, manual operation)
• Standardised - Electrical connection via M12 plug design (Power 4 pin: power supply for the motor, Logic 8 pin control signal, sensor signal and power for the integrated electronics)
• Connected - Use of extended functions possible via IO-Link (Motion parameters can be set remotely, copy and backup function for transferring parameters and read function for extended process parameters)

Datasheet - ELGS-BS-KF-32-400-8P-ST-M-H1-PLK-AA
