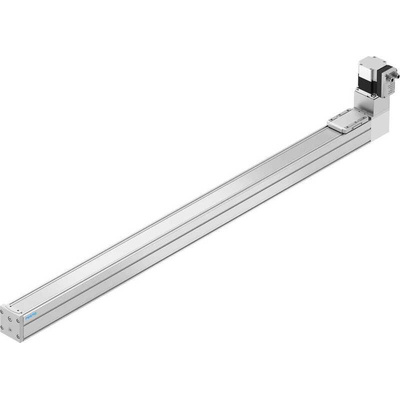

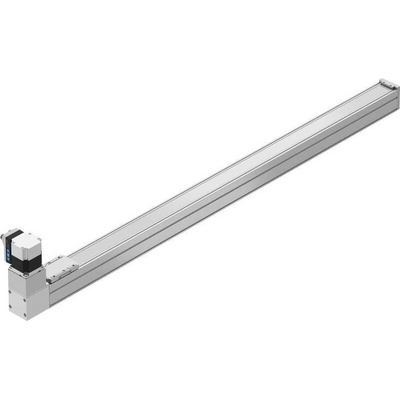

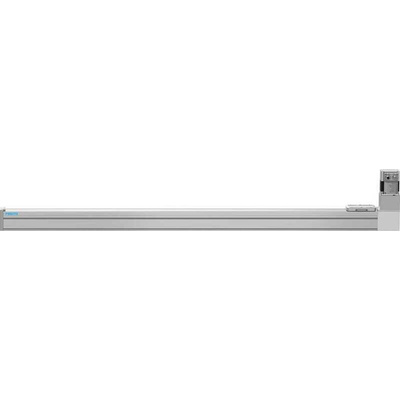

ELGS-TB-KF-60-1000-ST-M-H1-PLK-AA, Festo Micro Linear Actuator, 1000mm, 24V dc, 200N, 1300mm/s

Festo Electric Linear Actuator, Miniature Type, 24.83mm Drive Pinion Effective Diameter - ELGS-TB-KF-60-1000-ST-M-H1-PLK-AA

Get your workpieces in line with this electric linear actuator from Festo. It's a device that turns rotary movement into back-and-forth movement along a straight line, so can be used for efficient sliding, tilting and adjusting of objects. An IP40 rating means it's protected against contaminants greater than 1mm in size, so can withstand industrial environments. A working stroke length of 1000mm makes this an ideal choice for large-scale applications. A 100% duty cycle allows for continuous and uninterrupted operation, so you can rest assured this actuator's efficient and reliable.

Features & Benefits

• Maximum lifting force of 600N, for use in heavy-duty applications
• Maximum speed without load of 1300mm/s makes it ideal for high-speed devices
• Stepper motor provides precise and controlled movement with high accuracy and repeatability
• All parameters can be set directly, meaning the actuator is easy to install without additional software

Applications

• Automotive systems
• Medical devices
• Aerospace industry
• Robotic machinery

What's the benefit of this electric linear actuator's toothed belt axis?

The tooth belt axis design in the component reduces vibration and noise, so boosts efficiency and supports workplace comfort.
