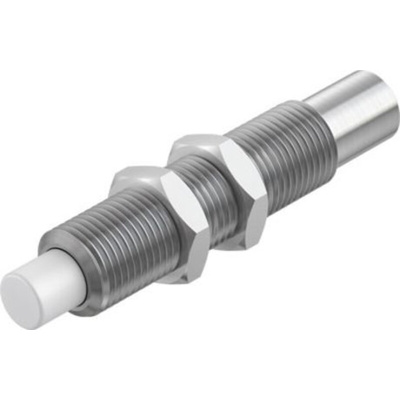

Festo Shock Absorber, DYSS-5-5-Y1F, 32.6mm Body Length

Festo Shock Absorber, 5mm Stroke Length, M8 Connection - DYSS-5-5-Y1F

For the smooth movement of loads in your industrial pneumatic system, choose this shock absorber from Festo. It works by converting kinetic energy from shock impulses to heat that it then dissipates, allowing for slower and more controlled movement. As the device features a durable high-alloy steel housing that provides resistance to impact and corrosion, it's suitable for use in harsh environments. Self-adjusting cushioning means the shock absorber automatically adapts to suit the load, without the need for manual intervention. Consuming up to 8000J of energy per hour, it's a practical choice for high-impact applications.

• Light weight of 7g for minimal strain on equipment
• Stop force of up to 200N, suitable for medium-duty use
• Wide operating temperature range between -10°C and +80°C for use in demanding conditions
• Can be assembled in any position for versatile installation
• Maximum tightening torque of 2Nm for a secure connection

Applications

• Industrial motors
• Vehicle suspension systems
• Robotics and automation industry

How do I mount this shock absorber?

This shock absorber comes with locknuts for secure screw-mounting onto your equipment.

Datasheet - DYSS-5-5-Y1F

Instruction Sheet - DYSS-5-5-Y1F
