MS2-LFR-QS6-D6-AR-MPA-C-M-B, Festo M5 Pneumatic Regulator - 0.5bar to 7bar, 8bar max. input, 8086645, Регулятор

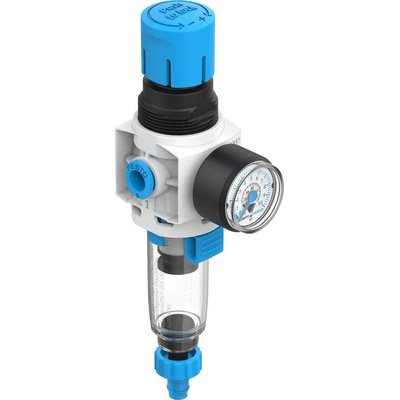

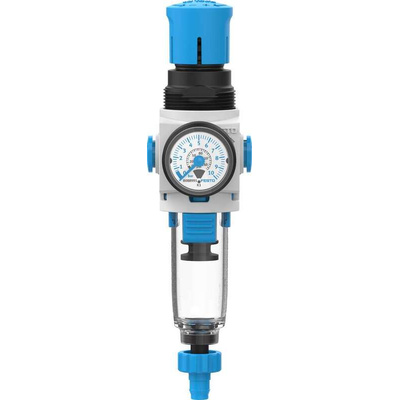

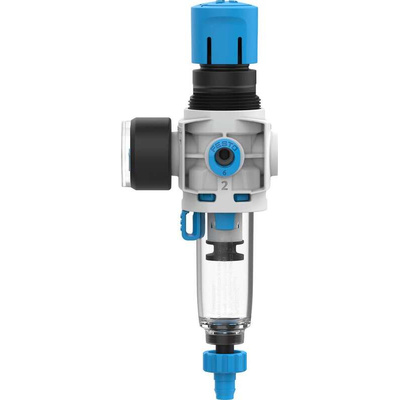

Festo Pneumatic Regulator, 5μm Filtration Grade, M5 Port Connection - MS2-LFR-QS6-D6-AR-MPA-C-M-B

Keen to keep your network running smoothly on clean air? Put this pneumatic regulator from Festo to work. It lets you set the pressure in a range between 0.5 and 7 bar and maintains that level, even if the supply fluctuates. Thanks to a built-in gauge, it's a breeze to check your system's pressure at a glance. As the regulator's 5μm-graded filter pulls particles from the air supply, it stops corrosion damage from disrupting your equipment. A simple drain screw means you just need a wrench to release any collected condensate.

Features & Benefits

• Transparent PC filter bowl for easy spot-checking
• Lockable actuator prevents accidental adjustments
• Works with flow rates up to 310L/min, keeping up with light-duty applications
• Push-in pneumatic ports quickly slot together with everyday machinery
• Vertically tilts by up to 5° for flexible inline installation

Applications

• Bottling plants
• Logistics industry
• Automotive manufacturing

How do I replace the filter element in this regulator?

The bowl easily twists and pulls away for handy access to the filter. To replace, simply unscrew the outgoing cartridge and slot your new one in, then push the bowl back into the main regulator unit.
