Festo R 1/8 Analogue Pressure Gauge 0bar Back Entry, VAM-40-V1/0-R1/8-EN, -1bar min., 537810

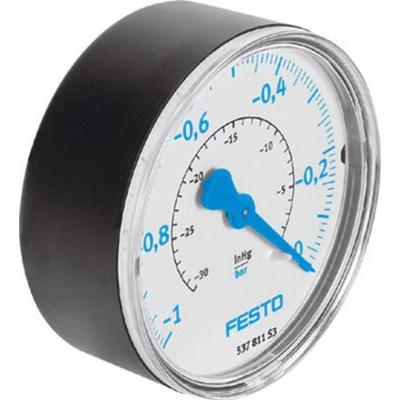

Festo Vacuum Pressure Gauge, 0 bar - VAM Series - VAM-40-V1/0-R1/8-EN

Use this vacuum gauge from Festo to take pressure readings below the atmospheric pressure range. The unit uses a Bourdon tube to detect changes in pressure and provides highly accurate readings. It features a durable ABS (acrylonitrile butadiene styrene) thermoplastic housing. The high tensile strength of this material makes it highly resistant to both physical impact and chemical corrosion. The gauge has a double scale, which allows for pressure readings in both bar and psi (pounds per square inch).

• Gauge outside diameter of 40 mm
• Maximum pressure measurement of 0 bar
• Operating pressure range of -1 bar to 0 bar
• Pneumatic connection type of R1/8
• Can be assembled in any position
• Threaded mounting type
• Rear side central connecting position
• Ambient temperature range of -20°C to +60°C
• Weight of 63 g

Range Information

• The vacuum pressure gauges in the Festo VAM range have analogue displays and gauges that can be loaded up to three-quarters of their full-scale value under a static load and up to two-thirds under intermittent load conditions
• Some of the units feature an adjustable red-green indicator reading range, giving you added peace of mind when monitoring compressed air
• The VAM series of components are suitable for front-panel or in-line installation

The Festo vacuum gauge used bourdon-tube pressure gauge design structure which assembled in any position. Its nominal size of pressure gauge is 40 which used operating pressure up to -1 to 0 bar. The pneumatic connection is R1/8 using with threaded mounting type.

Ambient temperature -10 to 60 °C
Used acrylonitrile butadiene styrene material
Product weight 63 g

Datasheet - VAM-40-V1/0-R1/8-EN
