Festo R 1/4 Analogue Pressure Gauge 0bar Back Entry, VAM-63-V1/0-R1/4-EN, -1bar min., 537811

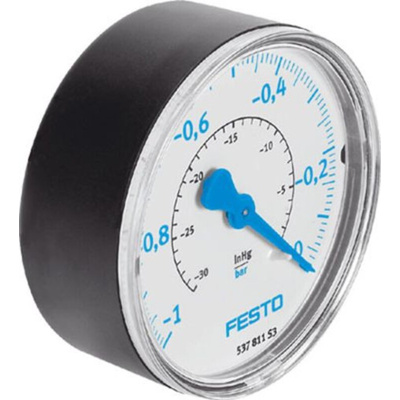

Festo Vacuum Pressure Gauge, 0 bar - VAM Series - VAM-63-V1/0-R1/4-EN

This vacuum gauge from Festo lets you take accurate readings of pressure at levels lower than the ambient atmospheric pressure. The Bourdon-tube-style unit doesn't require power to operate and offers a long service life. It has an extremely strong thermoplastic housing that's resistant to chemical corrosion and is suitable for use in harsh environments. The duel-scale gauge delivers pressure readings in bar, psi (pounds per square inch) and inHg (inches of mercury).

• Gauge outside diameter of 63 mm
• Maximum pressure measurement of 0 bar
• Operating pressure range of -1 bar to 0 bar
• Pneumatic connection type of R1/4
• Can be assembled in any position
• Front-panel installation mounting type
• Rear-side central connecting position
• Ambient temperature range of -10°C to +60 °C
• Weight of 83 g

Range Information

• The VAM range of vacuum pressure gauges from Festo is suitable for either front-panel mounting or in-line installation
• The components feature analogue displays. Some also have an adjustable red and green indicator reading range to provide extra safety when monitoring compressed air applications
• The units can be loaded up to three-quarters of their full-scale value under a static load and up to two-thirds under intermittent load conditions

The Festo vacuum gauge used bourdon-tube pressure gauge design structure which assembled in any position. Its nominal size of pressure gauge is 63 which used operating pressure up to -1 to 0 bar. The pneumatic connection is R1/4 using with front panel mounting type.

Ambient temperature -10 to 60 °C
Used acrylonitrile butadiene styrene material
Product weight 83 g
