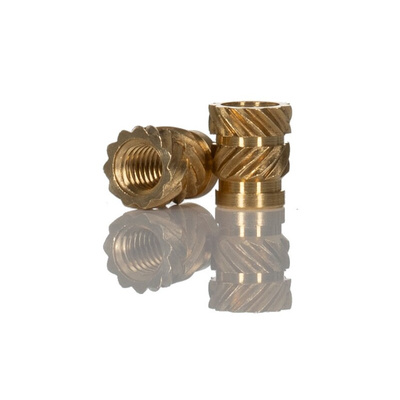

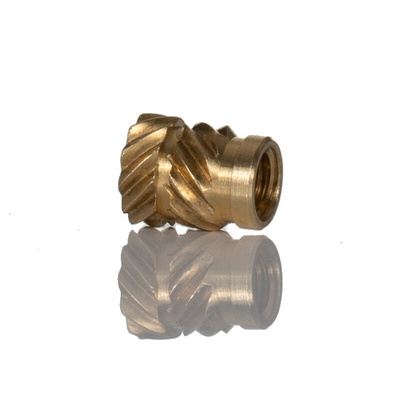

Thread Size, RS PRO, M3 Brass Threaded Insert, 4.6mm diameter 4mm Depth 5.7mm

2040616
Производитель: RS PRO
Цена за 1 упаковку (100 шт)
4038.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

RS PRO Brass Threaded Insert/
RS PRO introduces the fantastic range of heat install brass inserts designed for high performance in almost all thermoplastics, using either drilled or moulded holes. These threaded inserts feature an opposing herringbone knurled outer diameter for a secure hold and to reduce the stress on the plastic that could cause cracks. They also have a pilot end which aids insertion and makes alignment with the hole easy.
Features and Benefits/
ulliMaterial is brass - metal inserts are durable and resistant to corrosion, provides a better level of corrosion resistance than steel/liliOpposing herringbone knurled for a strong grip/liliPilot ended to aid in insertion/liliHeat or Ultrasonic installation/liliCan be used in drilled or moulded holes/liliVarious thread sizes - M3, M3.5, M4, M5 and M6/liliHigh torque \u0026 pull out, suitable for thin boss walls to maximise design space/liliAvailable in Flush or Flange headings/liliThe Flange headed version of the threaded insert to be used for electrical contact and higher performance/li/ul
Applications/
Threaded inserts are available in various materials and finishes and metric course threads to suit every application. Heat inserts are particularly suitable in thermoplastic materials that are prone to stress cracks that are also flexible to let the knurls anchor into the material. Threaded inserts are designed to provide strong permanent threads in thermoset and other hard plastics and are commonly used in plastic casings and housing.
Options Available/
RS PRO has designed a range of options to suit your needsThreaded Inserts available with Flush Heada href=\"/web/p/products/2040616\""204-0616/a - Insert M3 flusha href=\""/web/p/products/2040615\""204-0615/a - Insert M3.5 flusha href=\""/web/p/products/2040617\""204-0617/a - Insert M4 flusha href=\""/web/p/products/2040618\""204-0618/a - Insert M5 flusha href=\""/web/p/products/2040619\""204-0619/a - Insert M6 flush Threaded Inserts available with Flange Heada href=\""/web/p/products/2040620\""204-0620/a - Insert M3 flangea href=\""/web/p/products/2040621\""204-0621/a - Insert M4 flangea href=\""/web/p/products/2040622\""204-0622/a - Insert M5 flangea href=\""/web/p/products/2040623\""204-0623/a - Insert M6 flange
Why RS PRO?/
RS Pro is our family brand to go-to and brings you a wide range of high-quality and high-value products to support your project. Trusted by engineers all over the world, every part of every RS PRO product is always rigorously tested against demanding industry standards. We are only giving the RS PRO seal of approval if we're confident of their exceptional quality, which means you can be convinced too.

RS PRO Datasheet"
Mfr Part No.:
Thread Size
Диаметр крепежного отверстия:
4mm
Диаметр фланца:
4.6mm
Корпус - глубина:
5.7mm
Максимальная толщина материала:
1.6mm
Материал:
Brass
Наружный диаметр корпуса:
4.6mm
