198515 XV100-BOX-E4-UC1, Eaton EasyE4 Series Starter Kit, 12 → 24 V Supply, Relay Output, 8-Input, Digital Input

Eaton Programmable Logic Modules (PLCs) - easyE4 Series

Implementing control has been made easy with the easyE4 series of logic modules and control relays from Eaton, valuable time is freed up with the convenient and faster new technology, for power management needs. The number of input/output can be extended easily with a unique Eaton plug connector, meaning expansion modules can be added to meet your needs. User-friendly easySoft software allows users to create and adapt diagrams, whilst easy navigation menus, simulation, and online communications make this series intuitive and simple.

Eaton's easyE4 PLCs offers a wide variety of function, control of tasks are performed by the base unit via integrated inputs/outputs whilst tailoring of the systems is available through the expansion modules. The PLCs also feature Ethernet and NET interfaces and allow a maximum of 8 devices to communicate with each other, additional devices can also be connected for more complex tasks. Another feature of the series is allowing the modules to run parallel to a maximum of 10 clusters, and with Modbus TCP protocol the Eaton XC300 can be used as a central master control system for all E4 devices.

Features and Benefits:

• IIoT architectures integration, enabling transfer to the cloud
• Flexibility with up to 11 local expansion modules per unit
• AC/DC/UC mixed connection (12/24 V DC, 24 V AC, 100-240 V AC)
• Unlimited combination of base units and expansion modules
• Ethernet connection
• 188 available input and output
• 4 programming languages
• DCF77 synchronization
• Various visualization options
• Multi-level password protection and individual user list
• 12 V DC to 24 V DC operational voltage available in this series
• Easy to use software
• Expansion and logic modules available

Application:

The easyE4 series from Eaton offers a large number of functions such as logic, timing relay, counter functions, time switch, PID, Arithmetic and operating and display functions. The intelligent features in a PLC make them integral to a wide range of applications in automotive, industrial, building, environmental, maritime and light and show technologies.

Eaton PLC Starter Kit, 8 Inputs, 4 Outputs - easyE4 Series - 198515 XV100-BOX-E4-UC1

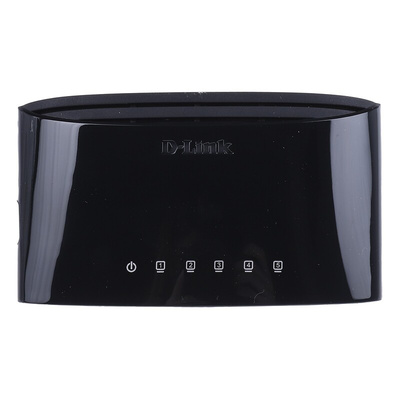

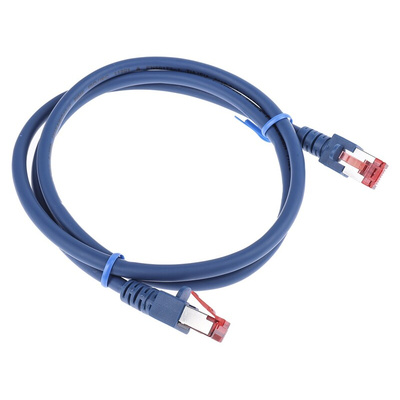

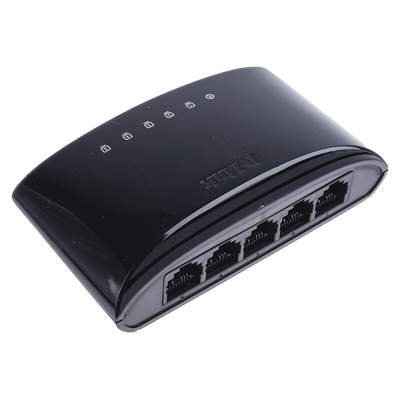

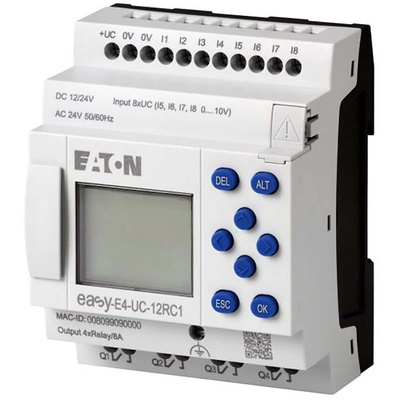

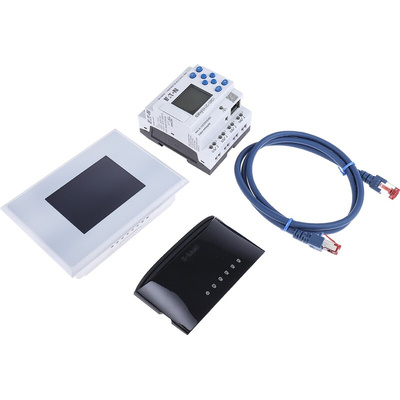

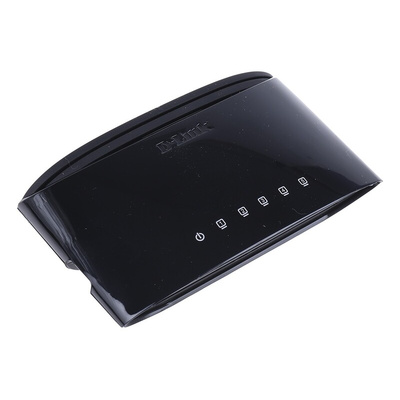

Make controlling automated manufacturing processes easier with this PLC starter kit from Eaton. It includes a control relay, touch display, Ethernet switch and three patch cables, so you've got everything you need to get started on making your system more efficient and flexible. For convenience, an easySoft software license allows for simple and intuitive programming in your preferred language. Thanks to integrated inputs and outputs, you can carry out a wide variety of functions and control tasks in one unit. This versatile kit is suitable for many different automated machine applications from light and show technologies to industrial building and automotive manufacturing.

• Multi-level password protection to prevent unauthorised access to your system
• Kit resists corrosion, so it's compatible with demanding industrial environments
• Thermally stable, so it won't degrade quickly when exposed to temperatures of between 0°C and +50°C
• Compact dimensions of 71.5 (L) x 90 (W) x 58mm (D) for easy portability

Is it possible to expand the capabilities of this basic module?

Yes, you can use up to 11 expansion modules to boost the capabilities of this device.

Note

Eaton formerly known as Moeller
