RS PRO Load Cell

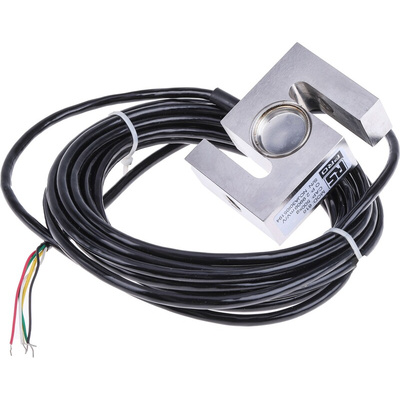

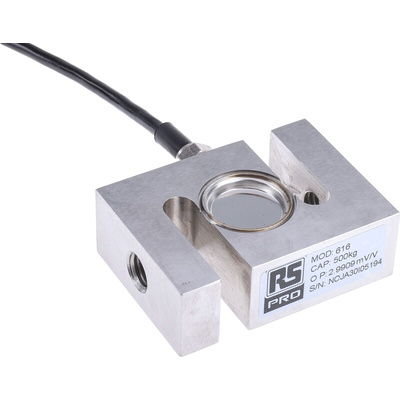

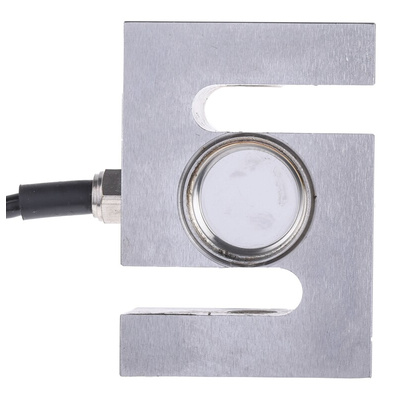

RS PRO Stainless Steel S Beam Load Cell

RS PRO gives you the brilliant S Beam Load Cell. Made from stainless steel for a load cell that is tough and reliable for even the harshest industrial utilisation. These S beam load cells have been specially designed by RS PRO for testing of tension and compression and bi-directional testing applications. Made to be a perfect tool to aid you in a wide range of measurement applications.

Features and Benefits

• S beam load cell has rated capacity of 5/50/100/150/200/300/500KGs meaning it will cover a variety of different loads


• Low profile so the load cell does not take up too much room or be cumbersome in your workplace


• Accuracy class of C3 widely used in machine construction so the load cell complies with requirements specified exactly for a multitude of factors that are critical to the quality of the measurement result


• The load cell has an operating temperature of -20°C to 60°C making if perfect for a wide range of environments


• The load cell is made from stainless steel with nickel-plated treatment giving you a tough and durable product


• Protection class of IP68 meaning that your S-beam cell is dust, dirt, sand and water resistant


• The S beam load cell is easy to install, stable and reliable


• Non-linearity - 0.02%R.O

Applications

Load cells are transducers that transform a force, for example, tension, compression or torque into an electrical signal, this is then measured and standardised. S type load cells are specially designed for compression and tension applications and used in a variety of industries for example:

• Hopper Scales


• Crane Scales


• Tension control


• Machine testing


• Batching systems


• Blending and Mixing systems


• Belt Scales


• Process Weighing Applications
