RS PRO Load Cell

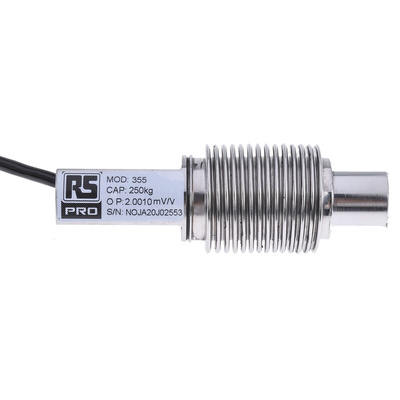

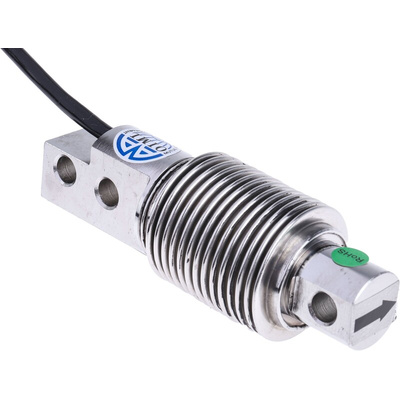

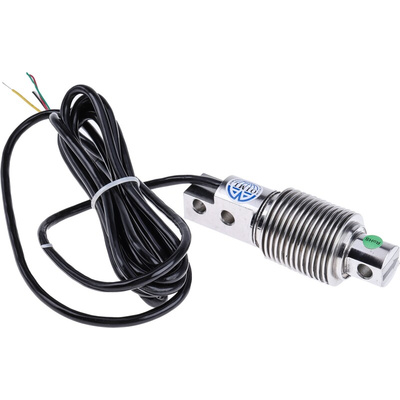

RS PRO Shear Beam Load Cell

RS PRO introduces the RS PRO Shear Beam Load Cell. This load cell is made from stainless steel with a fully welded construction to ensure durability and long life for your product. This shear beam load cells low profile, high accuracy, high precision and sealing makes this shear-type load cell perfect for a wide range of applications including bagging machinery, belt scales, weighing and measurement, conveyor systems and suitable for harsh industrial environments.

Features and Benefits

• This load cell has a fantastic range of rated KG load capacity from 500 KG to 3000 KG to suit a variety of needs


• Low profile so the load cell does not take up too much room or be cumbersome in your workplace


• Accuracy class of C3 which has been classified and tested per OIML R60, load cell complies with requirements specified exactly for a multitude of factors that are critical to the quality of the measurement results


• The beam load cell has an operating temperature of -20°C to 60°C making if perfect for a wide range of environments


• This loadcell is made from stainless steel to ensure a tough and durable product


• Protection class of IP68 meaning your load cell is dust, dirt, sand and water-resistant


• The load cell has a non-linearity of 0.03%R.O


• Maximum excitation 15 VDC


• Temperature effect on output of the load cell is 0.002% R.O/°C

Applications

Load cells are transducers that transform a force, for example, tension, compression or torque into an electrical signal, this is then measured and standardised. Load cells come in a variety of types from S-type, shear beam, strain gauge, beam and compression load cells. Shear type load cells and force sensors are specially designed for high accuracy applications and a variety of other applications where hermetically sealed cells are needed and used in a variety of industries for example

• Hopper and truck scales


• Platform scales


• Floor scales


• Industrial weighing system


• Tank and vessel weighing


• Filling systems


• Bagging machinery


• Belt scales


• Conveyor systems

Why RS PRO?

RS Pro is our family brand to go-to and brings you a wide range of high-quality and high-value products to support your project. Trusted by engineers all over the world, every part of every RS PRO product is always rigorously tested against demanding industry standards. We are only giving the RS PRO seal of approval if we're confident of their exceptional quality, which means you can be convinced too.
