RS PRO Load Cell, 0.6kg Range, Compression Measure

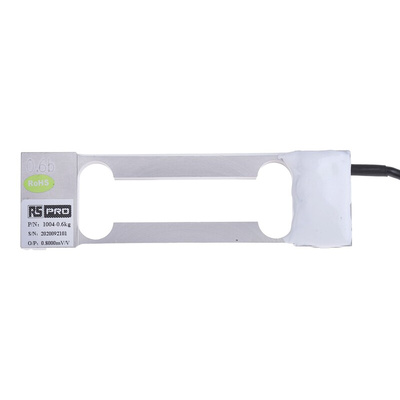

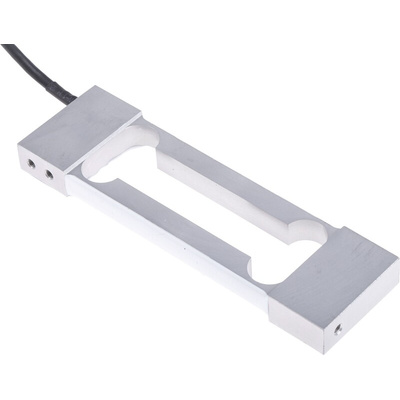

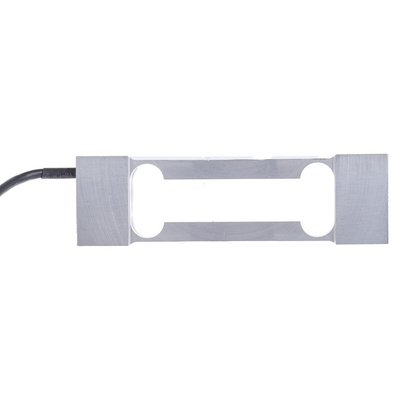

RS PRO Low Capacity Load Cell Balance Sensor

RS PRO introduces the RS PRO Precision Electronic Balance Sensor. This load cell is made from aluminium alloy to ensure durability and long life for your product. This electronic balance load cells low profile, high accuracy, high precision and low capacity makes this the perfect load cell for a small platform scale applications including retail and pricing and will deliver highly precise and reliable measurements even in long term use.

Features and Benefits

• This load cell has low load capacity from 0.2 KG to 3 KG perfect for small and precise scales


• Low profile so the load cell does not take up too much room or be cumbersome in your workplace


• Accuracy class of C3 which has been classified and tested per OIML R60, load capacity load cell complies with requirements specified exactly for a multitude of factors that are critical to the quality of the measurement results


• The load cell has an operating temperature of -20°C to 60°C making if perfect for a wide range of environments


• This loadcell is made from stainless steel to ensure a tough and durable product


• Protection class of IP67 meaning your load cell is dust-resistant


• The load cell has a non-linearity of 0.02%R.O


• Maximum excitation 15 VDC


• Temperature effect on output of the load cell is 0.002% R.O/°C

Applications

Load cells are transducers that transform a force, for example, tension, compression or torque into an electrical signal, this is then measured and standardised. Load cells come in a variety of types from S-type, shear beam, strain gauge, beam and compression load cells. Low capacity type load cells and force sensors are specially designed for high accuracy, high precision applications even in long term use for example

• Retail scales


• Pricing scales


• Counting scales


• Balance

Why RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.
