RS PRO Load Cell

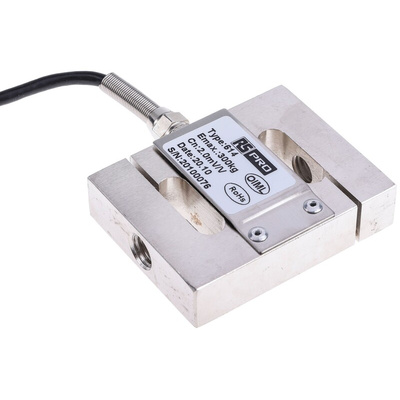

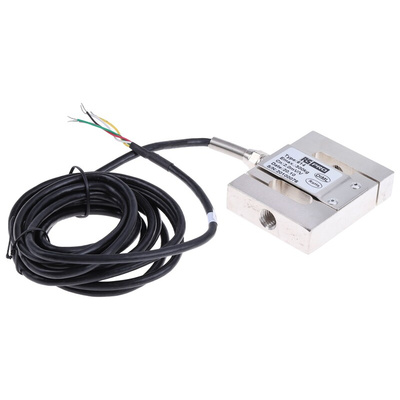

RS PRO Alloy Steel S Beam Load Cell

RS PRO gives you the brilliant S Beam Load Cell. Made from alloy steel for a load cell that is tough and reliable for even the harshest industrial utilisation. These S beam load cells have been specially designed by RS PRO for testing of tension and compression and bi-directional testing applications. Made to be a perfect tool to aid you in a wide range of measurement applications.

Features and Benefits

• S beam load cell has rated capacity of 5/100/150/200/300/500/750/1000 KGs meaning it will cover a variety of different loads


• Low profile so the load cell does not take up too much room or be cumbersome in your workplace


• Accuracy class of C3 widely used in machine construction so the load cell complies with requirements specified exactly for a multitude of factors that are critical to the quality of the measurement result


• The load cell has an operating temperature of -20°C to 60°C making if perfect for a wide range of environments


• The load cell is made from alloy steel with nickel-plated treatment giving you a tough and durable product


• Protection class of IP66 meaning that your S-beam cell is dust resistant


• The S beam load cell is easy to install, stable and reliable


• Non-linearity - 0.03%R.O

Applications

Load cells are transducers that transform a force, for example, tension, compression or torque into an electrical signal, this is then measured and standardised. S type load cells are specially designed for compression and tension applications and used in a variety of industries for example:

• Hopper Scales


• Crane Scales


• Tension control


• Machine testing


• Batching systems


• Blending and Mixing systems


• Belt Scales


• Process Weighing Applications

Why RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.
