RS PRO Load Cell

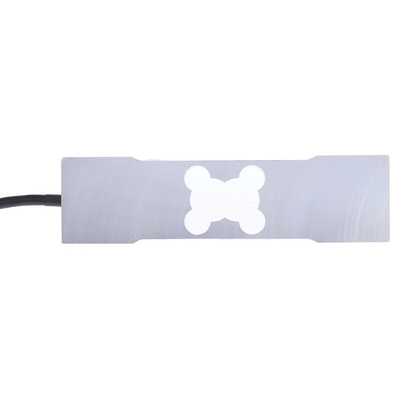

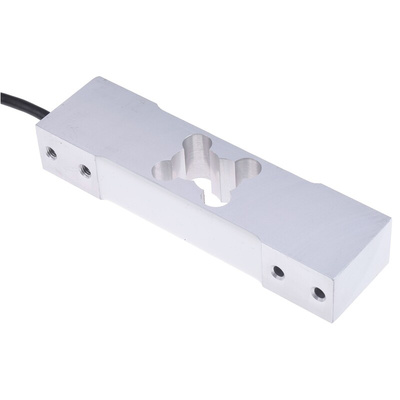

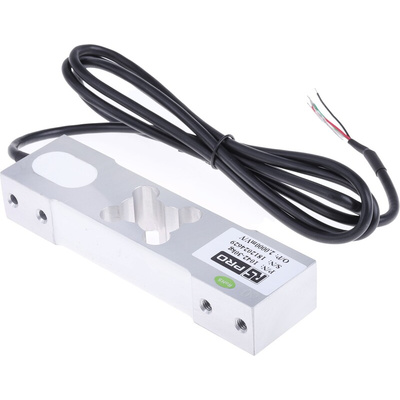

RS PRO High Accuracy Sensor Single Point Load Cell

RS PRO introduces the RS PRO high precision platform load cell. This load cell is made from aluminium alloy to ensure durability and long life for your product. This single point load cell was designed by RS PRO for direct mounting on low cost weighing platforms. This load cells low profile, high accuracy and high precision makes this the perfect load cell for platform scale applications including retail and pricing and will deliver highly precise and reliable measurements even in long term use.

Features and Benefits

• This load cell has range of load capacities from 15 KG to 200 KG perfect for a variety of precise scales


• Low profile load cell does not take up too much room or be cumbersome in your workplace


• Accuracy class of C3 which has been classified and tested per OIML R60, load capacity load cell complies with requirements specified exactly for a multitude of factors that are critical to the quality of the measurement results


• The load cell has an operating temperature of -20°C to 60°C making if perfect for a wide range of environments


• This loadcell is made from stainless steel to ensure a tough and durable product


• Protection class of IP67 meaning your load cell is dust-resistant


• The load cell has a non-linearity of 0.017%R.O


• Maximum excitation 15 VDC


• Temperature effect on output of the load cell is 0.0015% R.O/°C

Applications

Load cells are transducers that transform a force, for example, tension, compression or torque into an electrical signal, this is then measured and standardised. Load cells come in a variety of types from S-type, shear beam, strain gauge, beam and compression load cells. High accuracy single point type load cells are specially designed for high accuracy, high precision applications even in long term use for example

• Retail scales


• Pricing scales


• Counting scales


• Bench scales


• Platform scales

Why RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.
