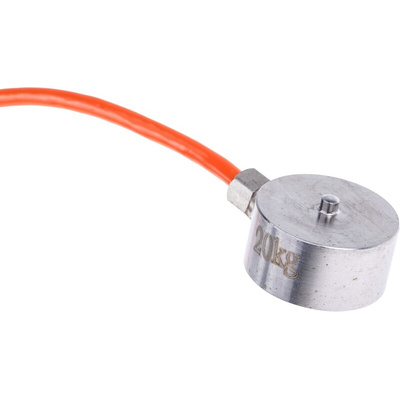

RS PRO Load Cell, 20kg Range, Compression Measure

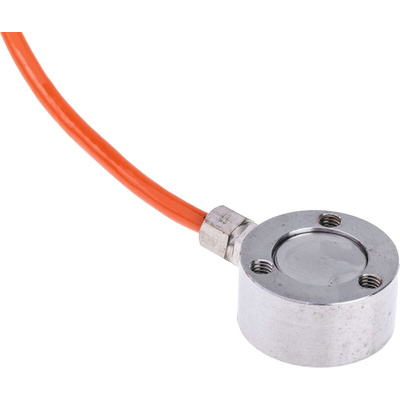

RS PRO Compression Load Cell

RS PRO introduces the RS PRO compression load cell. This load cell is made from stainless steel to ensure durability and long life for your product. This compression load cell was designed by RS PRO with the ability to fit into systems that have limited space. This load cells low profile and high accuracy make this the perfect load cell for reliable and highly precise measurements of loads between 5 kg to 200 kg.

Features and Benefits

• This load cell has a range of load capacities from 5 KG to 200 KG perfect for a variety of needs


• Low profile load cell with its small design does not take up too much room or be cumbersome in your workplace


• Accuracy class of C3 which has been classified and tested per OIML R60 load cell complies with requirements specified exactly for a multitude of factors that are critical to the quality of the measurement results


• The load cell has an operating temperature of -20°C to 80°C making if perfect for a wide range of environments


• This loadcell is made from stainless steel to ensure a tough and durable product


• Protection class of IP66 meaning your load cell is dust-resistant


• The load cell has a non-linearity of 0.3%R.O


• Maximum excitation 10 VDC


• Temperature effect on output of the load cell is 0.1% R.O/°C

Applications

Load cells are transducers that transform a force, for example, tension, compression or torque into an electrical signal, this is then measured and standardised. Load cells come in a variety of types from S-type, shear beam, strain gauge, beam and compression load cells. Compression load cells are specially designed to be easily incorporated into systems with limited space. Load cells are used in a variety of applications including:

• Automotive press-fit


• Automated assembly


• 3C products testing


• New energy product assembly


• Medical testing


• Hopper Scales


• Weighing Scales


• Mold assembly


• Industrial testing


• Insertion Force test instruments
