Microchip TC1015-3.3VCT713 Low Dropout Voltage, Voltage Regulator

TC1015 Low Dropout Voltage Regulator

The Microchip a TC1015 are high accuracy (typically ±0.5%) CMOS upgrades for older (bipolar) Low Dropout Regulators (LDOs) such as the LP2980. Designed specifically for battery-operated systems, the devices’ CMOS construction eliminates wasted ground current, significantly extending battery life. Total supply current is typically 50 μA at full load (20 to 60 times lower than in bipolar regulators).

Low Supply Current (50 μA, typical)
Low Dropout Voltage
Choice of 50 mA (TC1014), 100 mA (TC1015)
and 150 mA (TC1185) Output
High Output Voltage Accuracy
Standard or Custom Output Voltages
Power-Saving Shutdown Mode
Reference Bypass Input for Ultra Low-Noise
Operation
Overcurrent and Over temperature Protection

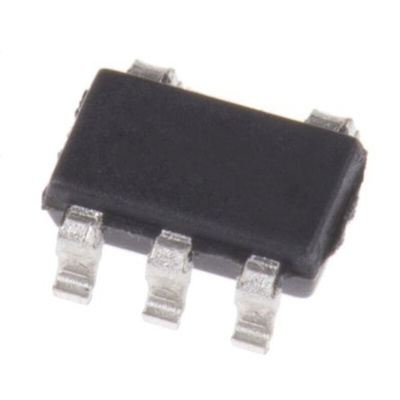

Space-Saving 5-Pin SOT-23 Package
Pin-Compatible Upgrades for Bipolar Regulators
Standard Output Voltage Options:
- 1.8V, 2.5V, 2.6V, 2.7V, 2.8V, 2.85V, 3.0V,
3.3V, 3.6V, 4.0V, 5.0V

LDO (Low Dropout) Linear Voltage Regulators, Microchip
