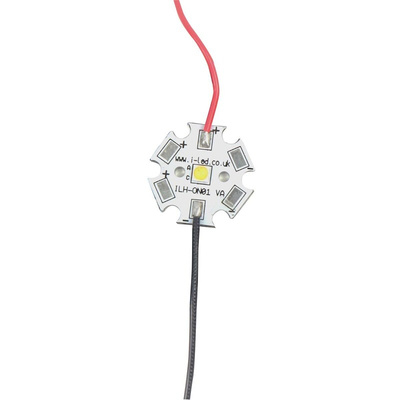

Intelligent LED Solutions ILS ILH-PO01-HYRE-SC221-WIR200., OSCONIQ P3030 LED Array, 1

The Intelligent LED Solutions PowerStar has an OSCONIQ P3030 Series LED from OSRAM Opto Semiconductors with more than one watt of optical power. This small package with it’s integrated lens allows superior compact arrangements of very high power. Due to its compact size and varieties of colours available this package is perfect for Horticultural Lighting, among other applications. Power Stars are compact, powerful LED light sources built on aluminium substrates for optimal thermal management. Available with 200mm wires as standard.

LED colour is hyper red
Power is 0.73W
Up to 50,000 hours lifetime to 70% of original brightness
With integral 120 degree or 130 degree silicone resin lens
Suitable Heatsinks available
Matching Power Supply available
Mounting holes using M3 screws allow easy installation
Size (LxWxH) is 20mm x 20mm x 3.23mm

Datasheet - ILH-PO01-HYRE-SC221-WIR200
