003H2, Delta-Mobrey Gap Sensor Level Alarm Switch Level Switch, FET Output, Horizontal, Vertical, Polyphenylene Sulfide Body

Mobrey Ultrasonic Level Switch

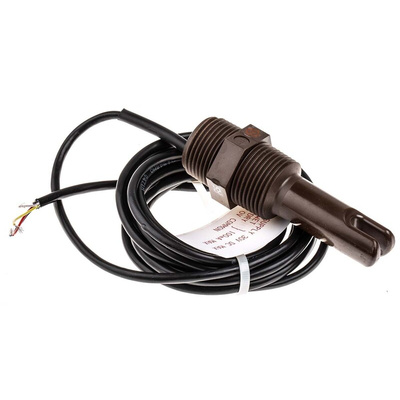

The Mobrey Integral ultrasonic level sensor switch is intended for level detection at a fixed point when liquid fills the gap between the crystals. It has polyphenylene sulphide construction and two open-drain FET transistors (one conducting when the sensor is wet and the other conducting when the sensor is dry) output type. This switch It has electric voltage ranging between 18VDC/AC and 30VDC/AC.

Note:
If the liquid to be monitored is flowing, the device should be fitted with the gap inline with the flow. In storage tanks, it should be fitted with the gap vertical unless the liquid is highly aerated when it should be angled.

Features and Benefits

Vessel pressure is 5bar (maximum)
Wet switching level detection at a fixed point when liquid fills the gap between the crystals
Switched voltage is 30VDC (maximum)
Suitable for low maintenance applications
High reliability with no moving parts
Not easily subject to fouling and not affected by ambient light conditions

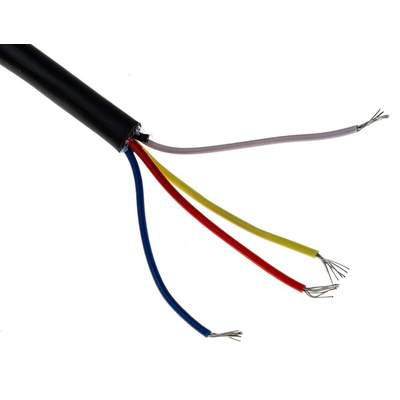

Fitted with 3m cable

Applications

Low level alarms in header tanks
Pump control duty in feeder tanks
High and low alarms in storage tanks
Level and pump control in storage tanks
Small or thin wall tanks
Bund level detection
Steering gear oil
