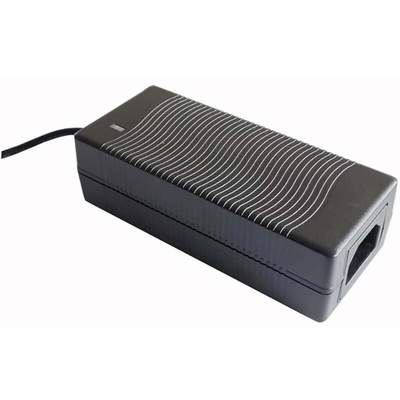

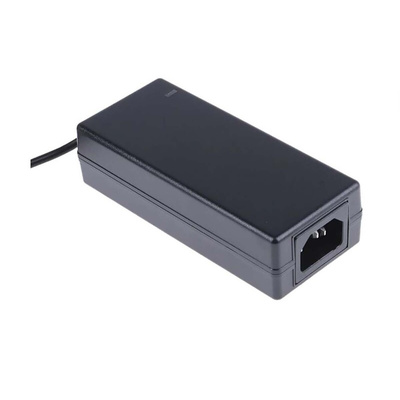

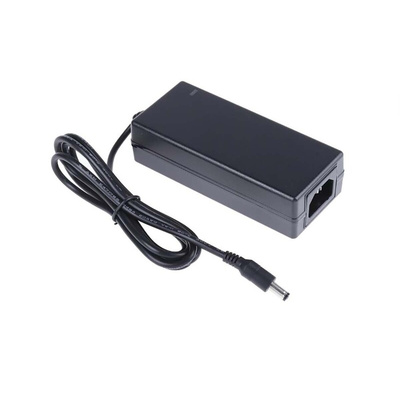

RS PRO 72W Plug-In AC/DC Adapter 24V dc Output, 3A Output

RS PRO Desktop Power Supply

Looking for a PC Power Supply, then consider a selection of RS PRO desktop power supplies designed for use in IT, audio, video, instrumentation, and communication applications. Our range has various output voltages, currents, and wattages all with 50/60 Hz rated frequency. Upon inspection, these power supplies are lightweight, offers a fully enclosed plastic case with an IP20 rating, 1200 mm or 1500 mm cable depending on the model, and weighs only 240 g.
Standout specifications include overload protection that offers a hiccup mode, automatic recovery after fault condition is removed

What is a desktop power supply?

A desktop power supply is a PSU specifically designed to be used by small items or applications, like laptops, CCTV cameras, or chargers. Due to the output of the PSU itself, they wouldn't be a suitable power source for high tech desktops. A PC power supply is created specifically to be used with that computer, whereas these units can be interchanged, providing the technical specifications of the appliance meet the PSU's in terms of safety and usability.

Why would you need an RS PRO desktop power supply?

Our PSUs made with high-quality components offers excellent protection and services. These devices are perfect as a main power source in desktop applications or as a secondary backup power supply that you can store away in your carry case until it's required.

Key Features

• Switched Mode Power Supply
• Class I
• Output Voltage Rating: 5V to 48 V dc
• Rated Output Power: 40W to 72 W
• Input connector: IEC 320-C14
• LED Power ON Indicator
• Overload Protection
• Short Circuit Protection
• Safety standards: UL62368-1, EN 62368-1, IEC 62368-1 approved
• Dimensions: 120mm x 52.5mm x 36mm

Model Options

• + 5V DC 8A 40W = RS stock no: 204-7562
• + 12V DC 5A 60W = RS stock no: 204-7563
• + 15V DC 4.33A 65W = RS stock no: 204-7564
• + 18V DC 3.5A 63W = RS stock no: 204-7565
• + 24V DC 3A 72W = RS stock no: 204-7566
• + 36V DC 2A 72W = RS stock no: 204-7567
• + 48V DC 1.5A 72W = RS stock no: 204-7568

Applications

The main purpose of a desktop power supply would be for laptops. However, providing the appliance or item will accept the output specifications, you could use this module in any of the following applications:
• Speakers
• Chargers
• CCTV Cameras
• Lamps and Lights

Why would choose RS PRO for desktop power supplies?

We support Industrial and Commercial businesses with PSUs, offering high-quality products that include desktop power supply units and accessories. Browsing our offer has vastly improved making it simple to select your desktop power supply of choice. Our products are supported with technical information and customer service we are sure you will appreciate.

RS PRO Datasheet
