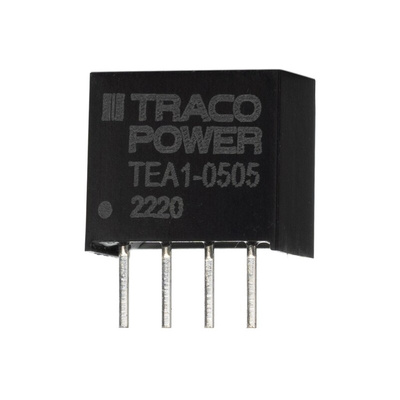

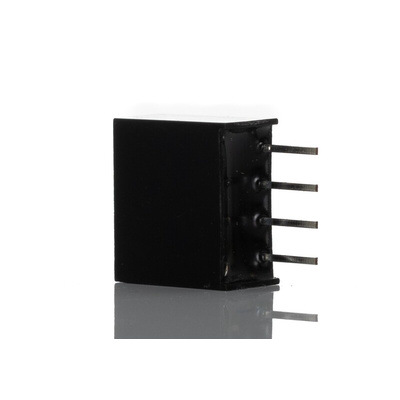

TEA 1-0505, TRACOPOWER TEA 1 DC-DC Converter, 5V dc/ 200mA Output, 4.5 → 5.5 V dc Input, 1W, Through Hole, +85°C Max Temp

Traco Power DC-DC Converter, 470μF Maximum Capacitive Load, Continuous Short-Circuit Protection - TEA 1 Series - TEA 1-0505

Want seamless power delivery to your low-voltage PCB-linked components? Trust this DC-DC converter from Traco Power to get the job done. Thanks to a power rating of 1W, it's just the thing for light-duty applications. The module stabilises and cleans the supply signal through its internal capacitor, delivering a balanced and noiseless 5V DC output. Using through-hole mounting, it latches firmly onto your circuit board and hangs on even in vibrating conditions. With a mean time between failures of more than two million operating cycles, you can rely on it to stay on shift for the long run.

Features & Benefits

• Isolation voltage rating of 1.5kV provides protection from sudden power spikes
• Wide operating temperature range of -40°C to +85°C makes it suitable for challenging conditions
• Light weight of 1.6g means it won't put a strain on the circuit board
• Cools by natural convection, so you don't need a heatsink

Applications

• Laptops and desktop computers
• Consumer electronics
• Electrical workshops

Is this converter flame-resistant?

Yes, it stops burning in 10 seconds or less in the event of a fire, so it fits the bill for sensitive applications.

Datasheet - TEA 1-0505

Application Note - TEA 1-0505
