RS PRO RS DT Differential Manometer With 2 Pressure Port/s, Max Pressure Measurement 2bar

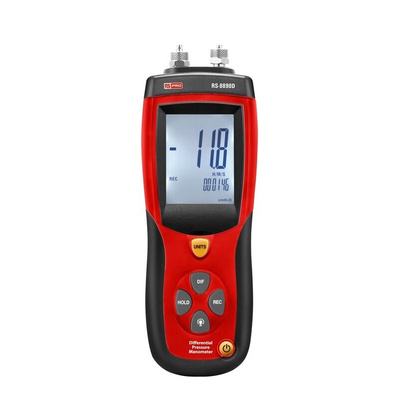

RS PRO Differential Pressure Manometer

Introducing the RS PRO Differential Pressure Manometer, a high-quality device that measures airflow and pressure with high accuracy and is a compact and rugged HVAC test and measurement instrument that offers a wide variety of measurement unit options, meaning that this is a functional and versatile tool that can be used across a wide range of pressure measurement applications, whilst offering fast, reliable and accurate readings. This modern and super compact RS PRO manometer has been designed for single-handed operation and offers the most essential features that are necessary for routine maintenance and system troubleshooting applications.

Features and Benefits:

• This RS PRO compact manometer features 11 selectable units of measurement including mbar, psi, hPa, bar and mmHg for flexibility and additional versatility across a wide range of applications


• This device offers a USB connection with additional software to capture measurements for added functionality


• The manometer offers a large, high-resolution LCD screen for easy viewing of results and data measurement and long battery life, while the backlit screen allows it to be used in low light environments and ducting


• Heavy duty and hard-wearing, this RS PRO manometer is durable with an IP40 rating


• The device is powered by a 9V battery with a low battery indicator and selectable ’auto power-off’ function to preserve battery life when not in use

Technical Features:

• ±29 psi range


• <0.5 second response time (typical)

Applications:

Large Dual LCD with backlight
Data Hold
Max/Min/Avg value with relative time stamp
Optional USB software
Zero Adjust, Offset and DIF function
Low battery indication and Auto Power Off

A manometer is a device that is used to measure pressure and the flow rate in the air, in gases or in liquids, depending on the application. These devices are generally compact and portable so that they can be taken to where the readings need to be measured and recorded. Manometers are versatile instruments that can be used across a wide range of industries and applications like:

• HVAC systems maintenance


• Meteorological and weather conditions monitoring


• Gas pressure monitoring in piping systems


• Fluid flow measurements


• Physiological measurements such as blood pressure


• Monitoring compressor systems operations

What is the difference between a manometer and a barometer?

Barometers or mercury manometers are devices that measure the atmospheric pressure around you. It is a very basic device that comes in a closed-end tube with a vacuum on the other end and measures as the pressure goes up or back down to the absolute pressure point. Manometers also measure atmospheric pressure this, however, in addition to this, manometers have additional features that can measure absolute pressure, differential pressure and gauge pressure and can be used in a wide range of servicing and maintenance applications to ensure that all parts that work using pressure are maintained and fully functional to ensure that downtime is limited.

What are the measurement units that this manometer can read?

This manometer measures in 11 different units: inH2O, psi, bar, mbar, kPa, inHg, mmHg, ozin, ftH2O, cmH2O, and kgcm

Why RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards. They’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.
