RS PRO RS-9519BT Handheld Digital Multimeter, True RMS, 10A ac Max, 10A dc Max, 1000V ac Max

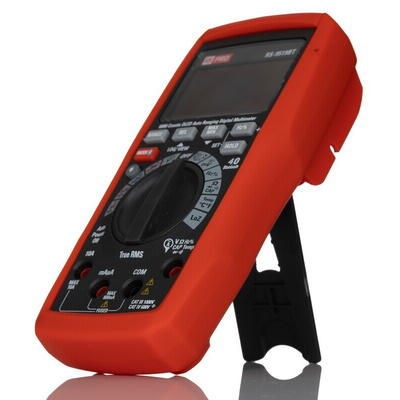

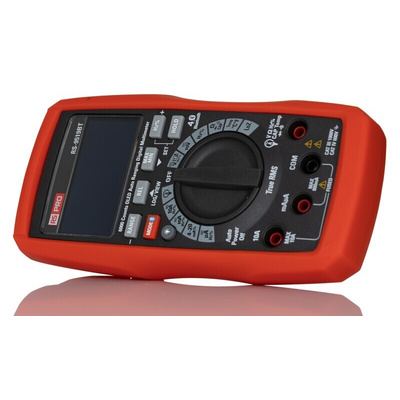

RS PRO RS-9519BT Handheld True RMS Digital Multimeter

Introducing the RS PRO RS-9519BT Handheld TRMS Digital Multimeter, designed with a Bluetooth function for easy and wireless data transmission. This is an ideal multimeter that has the ability to measure capacitance, voltage, and continuity, with the added benefit of being able to take precision low-value resistance measurements. It offers a robust and compact design, allowing for portability and protection from harsh working environments with readings clearly displayed on the high-quality OLED screen. A premium RS PRO digital multimeter like this is an essential addition to any engineer’s or technician’s test and measurement kit for accurate and reliable results.

Features and Benefits:

• This RS PRO Digital Multimeter is compact and handheld tester with a rugged design, ideal for when working in harsh environments


• It measures capacitance, voltage, resistance, frequency/duty cycle, continuity, electrical current, temperature and diode with accurate and reliable readings for the best performance thanks to the external flex clamp


• In addition to this, the meter features built-in Bluetooth technology for easy and wireless transmission of data


• The large digital backlit OLED screen clearly displays results for easy recording of the measurement outcomes, even in low-light conditions


• The digital multimeter offers an auto-power off function, as well as a low battery indicator for easier battery life management


• This multimeter has a low resistance range of 0 – 60 Ω and has a maximum output current of 10 A

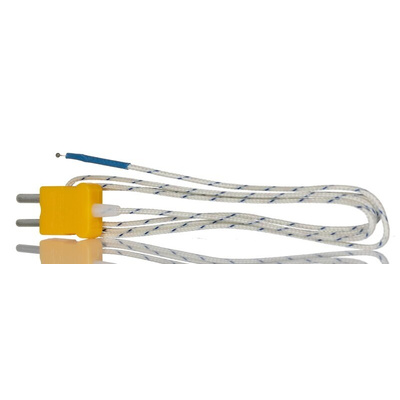

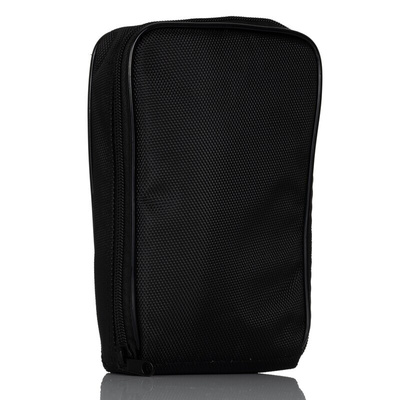

• Supplied with test leads, 3 x 1.5 V AAA batteries, Type K temperature probe, software and a carry case for easy storage and protection of the instrument

Applications:

A digital multimeter or DMM is an essential test tool that measures electrical values such as voltage, current, and resistance. A DMM is used as a standard diagnostics tool or device by technicians and electrical engineers in the following areas:

• Electrical and electronics industries


• Cable installation


• Construction


• Industrial manufacturing

What is the difference between an analogue and a digital multimeter?

The main difference is the display. A digital multimeter will show the results as numbers on a screen (usually an LED or LCD screen) whereas the analogue version has a needle to show the value.

Standards and Certifications:

• EN61010-1 CAT IV 600V, CAT III 1000V


• 1000V input protection on all ranges


• 10A/1000V & 0.8A/1000V fuses protection on current range


• Low pass filter for accurate measurement of variable frequency drive (VFD) signals

Why RS PRO?

RS PRO is the own brand of RS. The RS PRO Seal of Approval is your assurance of professional quality, a guarantee that every part is rigorously tested, inspected, and audited against demanding standards. Making RS PRO the Smart Choice for our customers.
