RS PRO PT100 Needle Insertion Temperature Probe, 115mm Length, 3.3mm Diameter, 500 °C Max

RS PRO PT100 Temperature Probe

Introducing the range of RS PRO high-quality PT100 Temperature Probes, ideal as a heavy-duty and high-accuracy solution for core temperature measurement of semi-solids. The probe has been designed with a bulbous handle for better and steadier penetration control when measuring, ensuring reliable results, and features a 2 m long durable cable with a DIN type plug, offering quick and easy installation, especially when time and resource is limited. The probe has a robust stainless-steel needle construction, suitable for use in harsh environments like industrial or commercial settings, whilst ensuring highly accurate and reliable measurements while being versatile enough to use in a wide range of applications.

Features and Benefits:

• This range of RS PRO PT100 temperature probes are ideal for high-accuracy and reliable air and gas temperature measurements in a wide range of environments


• Each sensor has a wide operating temperature range: -50 °C to +500°C with a 3.3 mm probe diameter

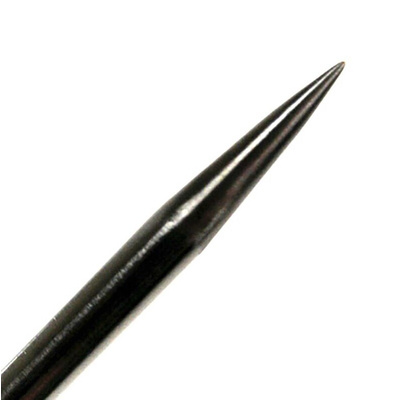

• The probe is made from rigid corrosion-resistant stainless steel for protection of the sensing element, while the needle probe tip allows an accurate and reliable result


• Designed to be water-resistant, the probe can withstand some liquid ingress should it happen while measuring

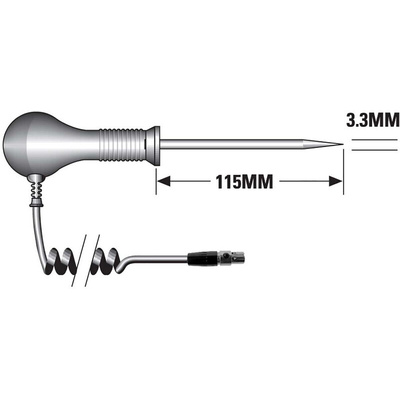

• Probe Length: 115 mm


• Class A accuracy standards met

Applications:

Temperature probes are known for their robust design meaning they are ideal for use in many general-purpose industrial, commercial and scientific applications where accurate temperature measurement and monitoring are key and essential in ensuring equipment is functioning correctly or accurately measuring during testing and investigations. These sensor probes are often used in the following areas:

• Air conditioning and refrigeration


• Chemical industry


• Plastics processing


• Stoves and grills


• Air, gas and liquid temperature measurement


• Exhaust gas temperature measurement


• Food processing


• Laboratories

What is a PT100 Probe?

A PT100 probe is a rugged and durable temperature sensor probe. The PT100 sensor element is mounted inside a metal sheath or probe which protects it from being damaged by the surrounding environment when it is inserted into the process to be measured. The other end of the probe features a 4-wire DIN connector.
