RS PRO PT100 Domed Liquid Temperature Probe

RS PRO PRT PT100 Immersion Temperature Probe

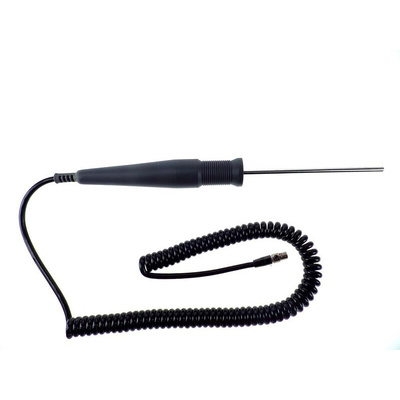

Introducing the range of RS PRO high-quality PT100 Immersion Temperature Probes, ideal as a heavy-duty and high-accuracy solution for liquid or gas temperature measurement. The probe has been designed with a straight handle for better and steadier control when measuring, ensuring reliable results, and features a 2 m long durable cable with a DIN type plug, offering quick and easy installation, especially when time and resource is limited. The probe has a robust Platinum Resistance construction, suitable for use in harsh environments like industrial or commercial settings, whilst ensuring highly accurate and reliable measurements while being versatile enough to use in a wide range of applications.

Features and Benefits:

• This range of RS PRO PT100 temperature probes are ideal for high-accuracy and reliable liquid and gas temperature measurements in a wide range of environments


• Each sensor has a wide operating temperature range: -50 °C to +500°C with a 4 mm probe diameter


• The probe is made from rigid corrosion-resistant platinum for protection of the sensing element, while the domed probe tip allows for reliable and accurate results


• Designed to be waterproof, the probe can withstand liquid ingress should it happen while measuring


• Probe Length: 100 mm


• Class A accuracy standards met

Applications:

Temperature probes are known for their robust design meaning they are ideal for use in many general-purpose industrial, commercial and scientific applications where accurate temperature measurement and monitoring are key and essential in ensuring equipment is functioning correctly or accurately measuring during testing and investigations. These sensor probes are often used in the following areas:

• Air conditioning and refrigeration


• Chemical industry


• Plastics processing


• Stoves and grills


• Air, gas and liquid temperature measurement


• Exhaust gas temperature measurement


• Food processing


• Laboratories

What is a PT100 Probe?

A PT100 probe is a rugged and durable temperature sensor probe. The PT100 sensor element is mounted inside a metal sheath or probe which protects it from being damaged by the surrounding environment when it is inserted into the process to be measured. The other end of the probe is terminated by an insulated lead comprising of 4 wire tails which are connected to the temperature measuring equipment.
