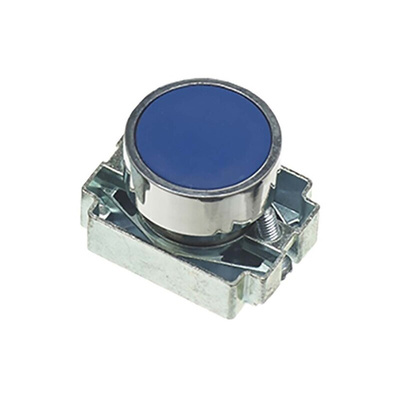

RS PRO Blue Momentary Push Button Head, 22mm Cutout, IP65

RS PRO Push Button Heads - Flush

Introducing a range of Push Button Heads from RS PRO. These flush pushbuttons are designed with a mounting collar and are commonly used with auxiliary contact blocks. Upon inspection, they are made from high-quality materials have a 22 mm diameter cut-out, fully sealed with an IP65 rating, and available in multiple colours.

Where would you find them?

Push button heads are commonly used in industrial applications, used in conjunction with auxiliary contact blocks. Contact blocks are electrical circuit connectors that are used to turn on or turn off an electrical circuit.

Key Features

• Mounting collar included


• Mechanical life more than 1 million uses


• Bezel construction: Bright metal (ZAMAC)


• Non-illuminated push buttons

Features and Benefits

• Round flush push button


• 22 mm cut-out diameter


• Push Button Actuation: Momentary


• Push Button with mark options available


• Operating temperature: 25°C to +70°C


• IP65 Rated

RS PRO Pushbutton Heads – Flush Variants

• Blue; RS stock no: 205-2353


• Red; RS stock no: 205-2354


• Green; RS stock no: 205-2355


• Yellow; RS stock no: 205-2357


• Black; RS stock no: 205-2358


• White; RS stock no: 205-2359


• Green with ’I’ marking; RS stock no: 205-2363

Compatible Contact Blocks

• NO, 10A, 500 V, Contact Block; RS stock no: 205-2382


• NC, 10A, 500 V, Contact Block; RS stock no: 205-2383

Applications

• Industrial


• Factories


• Power Plants

Why would you choose RS PRO for Push Button Heads?

RS PRO offers a wide range of push-button heads to suit your applications. Our range has been selected for its high quality and compatibility with auxiliary contact blocks. We understand quality is of great importance to any engineer and have ensured that all RS PRO push-button heads are rigorously tested against demanding industry standards. The RS PRO seal of approval is only issued when we’re confident of their exceptional quality.
