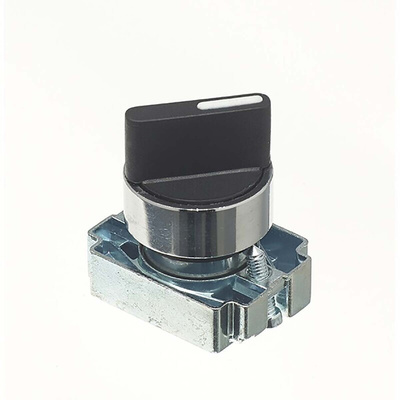

RS PRO 3 Position Selector Switch Head, 22mm Cutout, Black Handle

RS PRO Selector Switches Head - 3 Position Return to Centre (Short Lever)

Introducing a range of selector switches from RS PRO. These robust selector switch heads are integrated with mounting collars and are commonly used with auxiliary contact blocks. Upon inspection, they are made from high-quality materials such as; black with modern silver-coloured bezels, have a 22 mm diameter cut-out, fully sealed with an IP65 rating, and available with spring return switch actuation.

Where would you find them?

Selector switches are commonly used in industrial applications, used in conjunction with auxiliary contact blocks. Contact blocks are electrical circuit connectors that are used to turn on or turn off an electrical circuit.

Features and Benefits

• RCAS series selector switch head ø 22 mm


• Mounting collar included


• Colour: Black switch with position marking


• Bezel: Bright metal (ZAMAC)


• Cut-out Diameter: 22 mm


• Number of Positions: 2 or 3


• Switch Actuation: Spring Return


• Non-Illuminated


• Operating temperature: 25°C to +70°C


• Mechanical life more than 1 million uses


• IP65 rated

RS PRO Position Selector Switch Head Variants

• 2 Position Centre off / Spring Return from Right; RS stock no: 205-2369


• 3 Position Centre off / Spring Return from Left & Right; RS stock no: 205-2376


• 2 Position Centre off / Spring Return from Right (Long Handle); RS stock no: 205-2370


• 3 Position Centre off / Spring Return from Left & Right (Long Handle); RS stock no: 205-2377

Compatible Auxiliary Contact Blocks

• RS PRO NO 500 V; RS stock no: 205-2382


• RS PRO NC 500 V; RS stock no: 205-2383

Accessories Available Separately

RS PRO Mounting Collar; RS stock no: 205-2385

Applications

• Industrial control units


• Factories


• Power Plants

Why would you choose RS PRO?

RS PRO offers a wide range of selector switches to suit your applications. Our range has been selected for its high quality and compatibility with auxiliary contact blocks. We understand quality is of great importance to any engineer and have ensured that all RS PRO selector switches are rigorously tested against demanding industry standards. The RS PRO seal of approval is only issued when we’re confident of their exceptional quality.

Approvals

UL & CSA Approved
