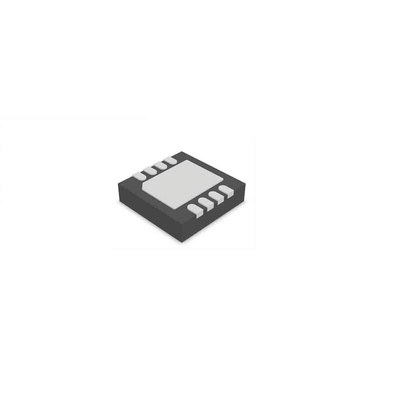

ON Semiconductor NCV7344MW0R2G, CAN Transceiver 5Mbps CAN, 8-Pin DFNW

The ON Semiconductor high speed low power CAN transceiver is the interface between a controller area network (CAN) protocol controller and the physical bus. This provides differential transmit capability to the bus and differential receive capability to the CAN controller. It has additional timing parameters to ensure robust communication at data rates beyond 1Mbps to cope with CAN flexible data rate requirements (CAN FD). These features make the NCV7344 an excellent choice for all types of HS-CAN networks, in nodes that require a low-power mode with wake-up capability via the CAN bus.

Very low current standby mode with wake-up via the bus
Low electromagnetic emission (EME) and high electromagnetic immunity
Very low EME without common-mode (CM) choke
No disturbance of the Bus lines with an un-powered Node
Transmit data (TxD) dominant timeout function
Under all supply conditions the chip behaves predictably
Very high ESD robustness of bus pins, >8kV System ESD pulses
Thermal protection

Datasheet - NCV7344MW0R2G
