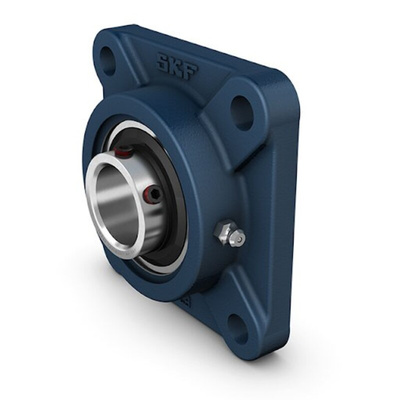

SKF 4 Hole Flange Bearing Unit, Y/UCF 215, 75mm ID

SKF Bearing Unit, Flange Bearing Type, 75mm ID, 200mm Length - Y/UCF 215

Install this bearing unit from SKF for the reliable support of your rotating shafts. The flanged bracket helps with the secure mounting and positioning of bearings. It also withstands axial thrust to prevent misalignment. This component accommodates both constant and alternating rotation, thanks to its insert bearing and extended inner ring. Set screw locking keeps it held firmly in place, so you can be sure of dependable operation and reduced downtime. Pre-drilled holes assist with quick and easy installation, while compact dimensions of 200 (L) x 200 (W) x 78.3mm (D) lets you fit the part in confined spaces.

Features & Benefits

• Hardwearing cast-iron housing for a prolonged service life
• Sealed unit keeps contaminants out to protect internal components
• Limiting speed of 2100r/min for use with demanding applications

Applications

• Food processing machinery
• Agricultural equipment
• Construction industry
• Marine applications
• Textile production

Does this bearing unit come with an end cover?

This bearing unit is supplied without an end cover. For user safety and to protect the shaft, you can use a cover from SKF's ECY series.

Can I relubricate this bearing unit?

Yes, it comes with a relubrication hole and a correctly-sized nipple.

Datasheet - Y/UCF 215
