TSN 522 A, SKF Nitrile Rubber Seal, 100mm ID, 157.5mm OD, 14.8mm

SKF V-Ring Seal for Pillow Block, 100mm ID - TSN 522 A

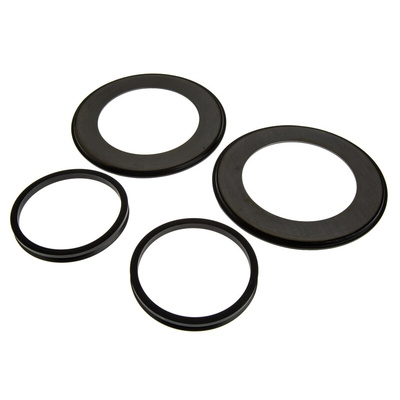

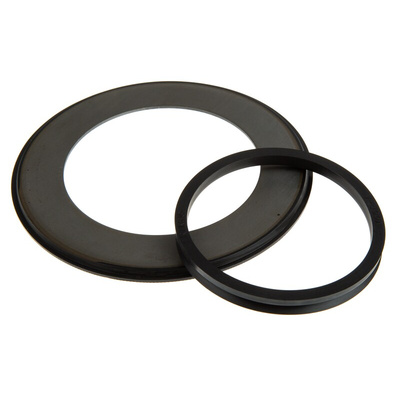

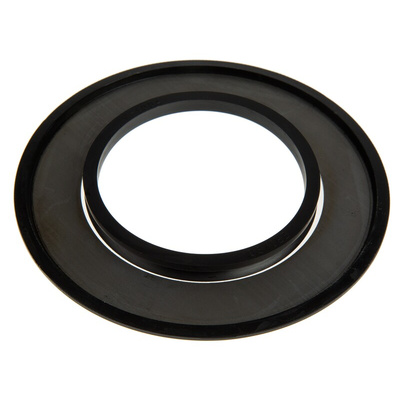

Fit this V-ring seal from SKF to protect your pillow block from contamination. It works with pillow blocks from SKF by slotting around the enclosed shaft and stopping dust and moisture from getting in. This prevents corrosion and damage to the internal mechanism. The seal comes with a separate ring and washer and combines gripping power with mechanical resilience to give a tight seal that can withstand substantial operational forces.

• Sealing ring made from NBR to keep the seal adhered to the shaft's rotations for consistent protection
• Maximum operating speed of 1,340rpm for effective use in high-speed applications
• Protective sheet-steel washer is resistant to corrosion for a long service life

Applications

• Power-plant belt feeders
• Food processing
• Agricultural industry

What are the permissible misalignments for this V-ring seal?

The permissible angular displacement of this seal is between 1 and 1.5°. For axial movement, the permitted misalignment of this seal is between 1 and 1.2mm.

What size is this V-ring seal?

This seal has an inside diameter of 100mm and a centre height of 120mm.

General - TSN 522 A

2055009_Datasheet_en
