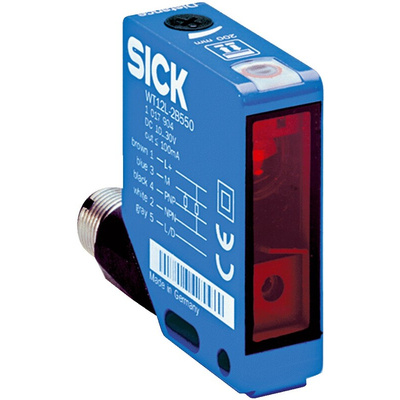

WL12L-2B531, Sick Retroreflective Photoelectric Sensor, Block Sensor, 18 m Detection Range

Overview

The W12L-2 series of photoelectric sensors features laser technology that is optimally designed for individual applications. These sensors provide reliable object detection, fast response times and are enclosed in a rugged metal housing, which is ideal for use in all types of industrial applications.

At a glance

Best-in-class retro-reflective laser performance in a metal housing
Teflon® coating available
Precise autocollimation optics
Adjustable focus on retro-reflective sensors
High switching frequency of 2.5 kHz
Connection via cable or rotatable connector
Mounting options with through holes, blind holes, oblong holes and dovetail
Laser protection class 1 or 2

Your Benefit

Reliable object detection of small objects due to superior ASIC (application-specific integrated circuit) technology combined with innovative laser technology
Red light laser technology provides quick and easy alignment of sensor
Rugged metal housing (available with Teflon® coating) withstands harsh environments
Laser protection class 1 or 2 for eye safety
Resistance to optical interference reduces false readings and downtime
Rotatable connector provides easy installation

Applications

Component detection in a crossbar robot
Component detection in a crossbar robot
Positioning of the sheet pallet
Automated part infeed and outfeed
Fine positioning of the x and y axes in the driving and lifting unit

Note

Product details cover the whole product family. For details on the specifications for this individual product, please refer to the datasheet.

Datasheet - WL12L-2B531
