RS PRO Uninsulated Male Spade Connector, Tab, 0.8 x 6.35mm Tab Size

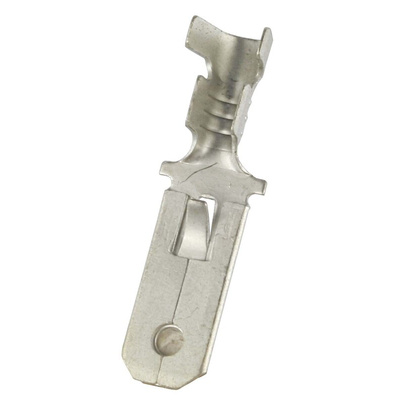

RS PRO Uninsulated Male Spade Connector

The RS PRO range of uninsulated spade connectors keeps on improving. We are pleased to introduce a male spade connector made from high-quality brass. This connector is perfect for connecting electrical cable wire, offers a locking lance that ensures secure retention of the terminal and is compatible with popular wire size; 16 AWG to 14 AWG. During application this spade connector has a crimp termination, so the mating of connector and wire can be easily achieved with a good quality crimp tool.

Features and Benefits

• Made from Brass
• Tin Plated
• Wire range: 16 to 14 A.W.G. (1.5-2.5mm²)
• Locking lance for secure retention in the housing
• Excellent strength and conductivity

Things to consider

When selecting the right terminal for your application, you should consider the following;

• Wire size 'mm' (metric) or 'AWG' (American Wire Gauge)
• Tab size to which you will be connecting the terminal.
• Width of the receptacle should match the width of the tab it is mating with and vice versa.

How to crimp a male spade connector

Mating a wire with a terminal is an easy application achievable by professional and DIY users alike. Slide the appropriate wire into the tunnel on the connector and using pliers or a crimp tool apply moderate clamping pressure until a perfect union is achieved. A quick check that the wire has no movement is advised.

Crimping Tool

• For suitable crimping tools please see RS stock no: 534-806

Applications

These female connectors are used in a wide range of industries including industrial, automotive, and consumer industries. Applications include;

• Electrical Wire Installation
• Industrial control systems
• Automotive applications
• Communication equipment
• Power supplies
• HVAC

Why would you choose RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too
