Siretta ZETA-NEP-LTE4 (EU) STARTER KIT

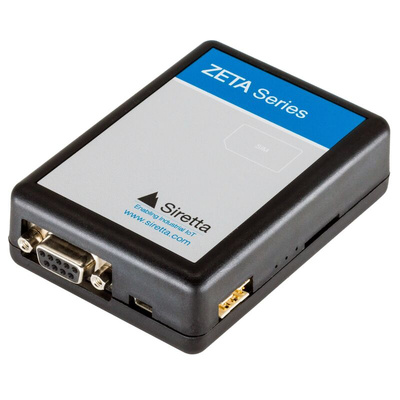

The ZETA-NEP-LTE4 (EU) is a cutting edge, low power industrial modem with general purpose interfaces. It will connect equipment to the European
LTE Cat 4 network and provide backwards compatibility to the existing European 3G / UMTS and 2G / GSM cellular networks. The modem
operates in a low power state thanks to it’s intelligent power saving design, making it ideal for use in industrial IoT applications today, and for long term
future developments.

The ZETA-NEP-LTE4 (EU) can also monitor general purpose inputs and drive full specification outputs. Other interface options include legacy RS232
for connection to existing equipment, and a high speed USB interface.The powerful C development environment reduces redundancy and lowers
system component costs, allowing developers to maximise the power of their application directly on the device and eliminating the requirement for
an external microcontroller. As a result the ZETA-NEP-LTE4 (EU) lends itself to rapid proof-of-concept developments with minimal investment, providing
fast time to market and maximum scalability offering intelligence and decision making at the cloud edge.

Features & Benefits

6 Bands: 4G / LTE: B1(2100), B3(1800), B7(2600), B8(900), B20(800), B28A(700) MHz
3 Bands: 3G / UMTS: B1(2100), B3(1800), B8(900) MHz
2 Bands: 2G / GSM | GPRS: B3(1800), B8(900)
LTE FDD Category 4
3GPP release 10 compliant
VoLTE Support
SIM Application Tool Kit 3GPP TS 51.014
Control via AT commands according to 3GPP
TS27.005, 27.007 and Telit Custom AT commands
IPv4/IPv6 stack with UDP/TCP/FTP/SMTP protocol

Physical Interfaces

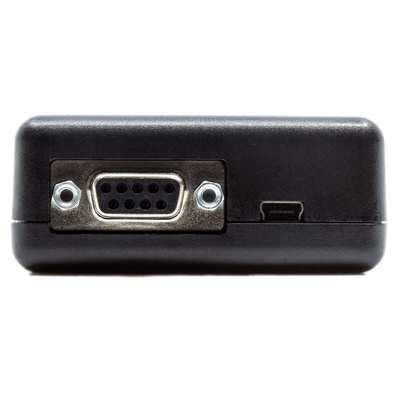

1 x RS232 serial port interface (9-wire)
1 x USB 2.0 FS

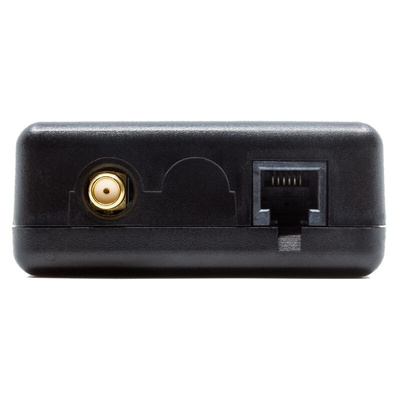

1 x RJ12 power connection (5 - 42V)
Nominal supply 12V
Power on & power off control
1 x SMA female cellular antenna connector
1 x SIM card reader (push-push) 3V, 1.8V
3 x external LED status indicators (Red, Green, Blue)
Includes GPIO (10-way connector)
3 x GPI: Inputs (0-42V)
2 x GPO: Outputs (0-42V @1A)
1 x ADC (0-42V)
1 x RS232 secondary serial port (3-wire TTL)
1 x PSU Output @ Vcc

The Siretta ZETA-NEP-LTE4 (EU) is a cutting edge, low power industrial modem with general purpose interfaces. It will connect equipment to the European LTE Cat 4 network and provide backwards compatibility to the existing European 3G / UMTS and 2G / GSM cellular networks. The modem operates in a low power state thanks to it’s intelligent power saving design, making it ideal for use in industrial IoT applications today, and for long term future developments.

Applications

CCTV
Video Surveillance
Car Parking Payment
Kiosks
Smart Cities
Alarm Notification Systems
Infotainment Systems
Environmental Monitoring
Traffic Control Systems

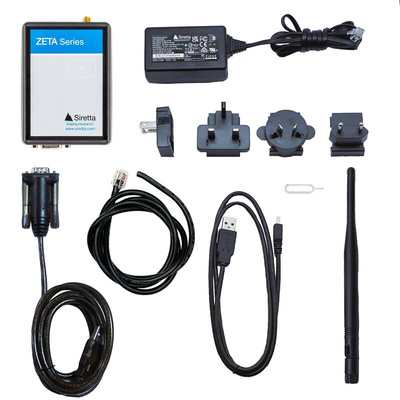

Accessories Included

1 x Cellular Antenna
1 x GPS Antenna
1 x 1.5M RS232 - USB Cable
1 x 1M USB Mini B Cable
1 x RJ12 Power Pigtail
1 x Pin Reset Tool
1 x Multi Head Power Adaptor

Certifications

CE
UKCA
RoHS
